SELECT A DIAGRAM

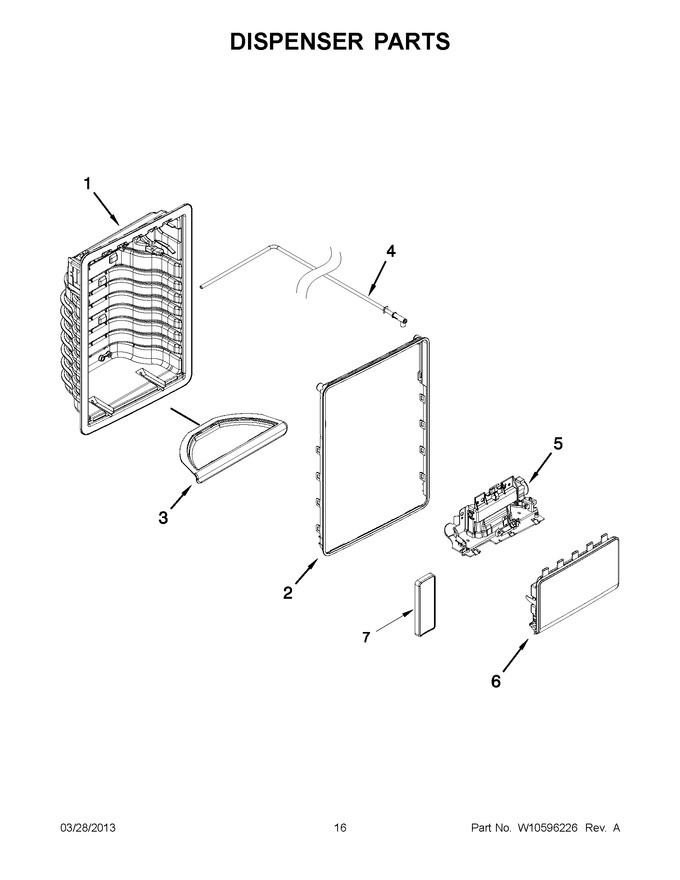

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10462438		Trim Ring (white)				$ 38.57
2	W10462439		Trim Ring (black)				$ 38.46
2	WPW10402180		Trim Ring (chrome)   (Replaces: W10402180)			Immediately	$ 60.92
3	W10606644		Drip Tray (white)   (Replaces: W10446197)				$ 42.38
3	W10446196		Drip Tray (black)		Appelez-nous	-
3	WPW10606639		Drip Tray (grey)   (Replaces: W10402167)				$ 101.40
4	W11566468		Water Tube With Spigot   (Replaces: W10294737)			Immediately	$ 58.56
5	WPW10291704		Ice Door Assembly   (Replaces: W10291704)				$ 192.66
6	WPW10594950		Ui Assembly Control (silver Mirror)   (Replaces: W10594950)				$ 370.95
6	WPW10594951		Ui Assembly Control (black)   (Replaces: W10594951)				$ 370.95
7	W11028219		Pad Assembly- Water & Ice (cast Grey)   (Replaces: W10473006)				$ 85.54
7	WPW10370592		Pad Assembly- Water & Ice (black)   (Replaces: W10370592)				$ 322.90
7	W10853387		Pad Assembly- Water & Ice (tempest Grey)   (Replaces: W10473007)				$ 290.31

    View Diagram in Separate Window       Print Part List
