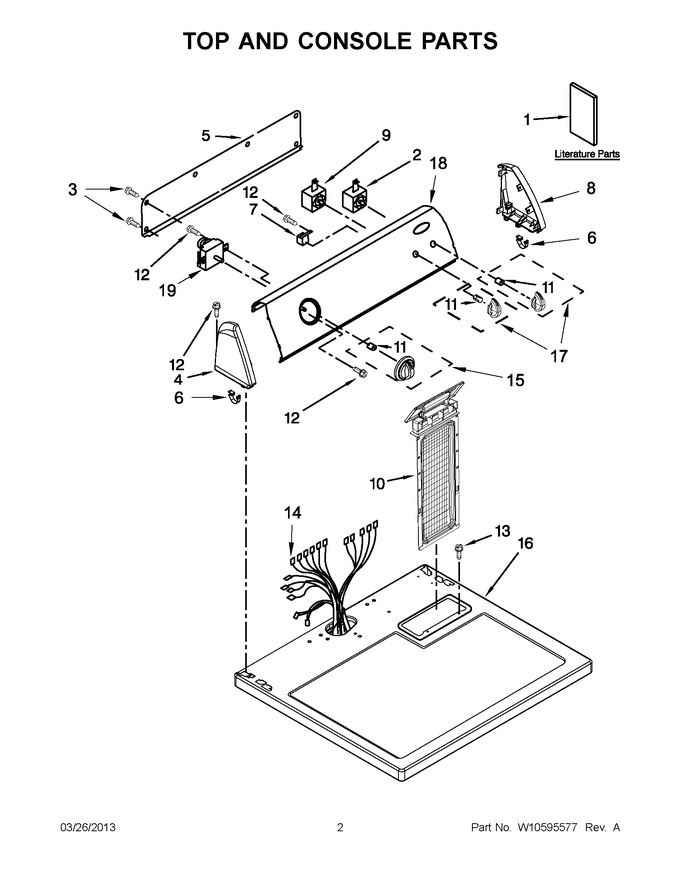

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185986 | Wiring Diagram |
|
- | |||||
| 1 | W10096986 | Guide, Use & Care |
|
- | |||||
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 2 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 58.28 | |||||
| 5 | W10103406 | Panel, Rear (console) |
|
$ 121.78 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 10 | W11778253 | Lint Screen (Replaces: 8557857) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10344848 | Harness, Main |
|
$ 70.67 | |||||
| 15 | W10034750 | Assembly, Timer Knob (white/metallic) |
|
$ 28.27 | |||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | W10034380 | Assembly, Control Knob (white/metallic) |
|
$ 25.06 | |||||
| 18 | WPW10295262 | Assembly, Control Panel & Bracket (Replaces: W10295262) |
|
$ 240.76 | |||||
| 19 | WPW10185982 | Assembly, Timer (60 Hz.) (Replaces: W10185982) |
|
Immediately | $ 170.80 |
