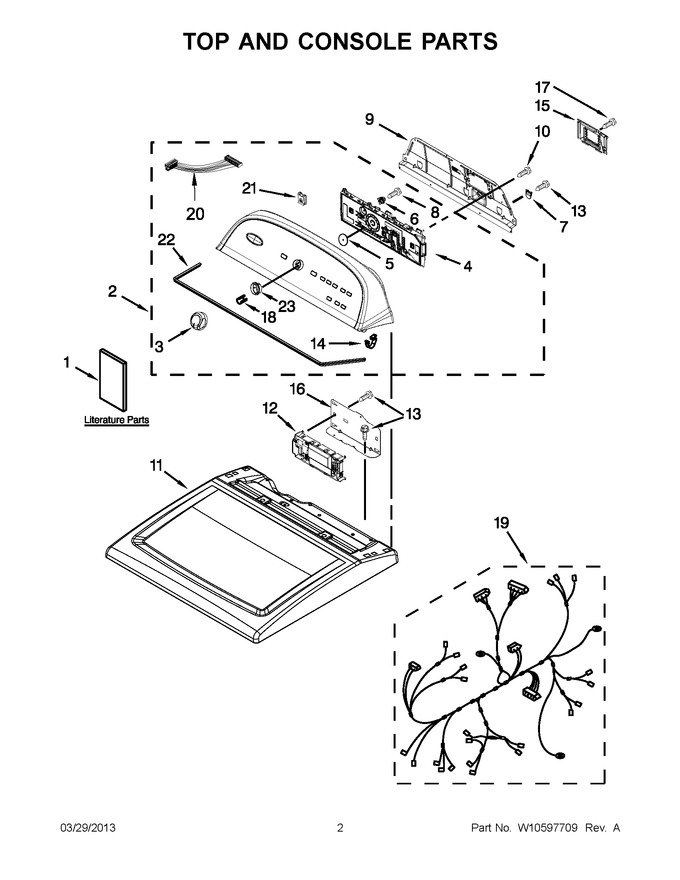

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10454272		Installation Instructions		Appelez-nous	-
1	W10524061		Tech Sheet		Appelez-nous	-
1	W10454271		Guide, Use & Care		Appelez-nous	-
2	W10456268		Assembly, Console (complete)		Appelez-nous	-
3	WPW10251392		Assembly, Knob   (Replaces: W10251392)				$ 59.55
4	WPW10362634		Assembly, User Interface   (Replaces: W10362634)				$ 312.40
5	W10323092		Seal, User Interface		Appelez-nous	-
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	W10279552		Plug-upper Rear Panel		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
9	W10550615		Panel, Rear Console				$ 116.83
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
11	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 215.10
12	WPW10346523		Ccu-control   (Replaces: W10346523)				$ 342.47
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10339708		Harness, Main		Appelez-nous	-
20	W10285495		Cable, User Interface		Appelez-nous	-
21	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13
22	W10280079		Seal, Console		Appelez-nous	-
23	W10325119		Spacer, Knob		Appelez-nous	-
