Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 3-82390-001 Knob, Control Special Order $ 30.10

3 4-80576-201 Support, Right Hand Appelez-nous -
4 WP4-83053-001 Thermostat   (Replaces: 4-83053-001) Special Order $ 254.87

5 3-24004-092 Screw Special Order $ 4.28

6 4-80576-202 Support, Left Hand Special Order $ 25.63

7 3-80340-105 Gate Appelez-nous -
8 4-82389-002 Housing, Corner Control Special Order $ 39.19

9 W11384469 Switch, Light   (Replaces: 2-32164-001) In-Stock Immediately $ 39.09

10 W10389334 Tubing, Thermostat Barrier Appelez-nous -
11 40A15 Bulb-light   (Replaces: 1-34291-002) In-Stock Immediately $ 1.98

12 4387478 Socket, Light   (Replaces: 2162085) In-Stock Immediately $ 115.67

13 3-82392-001 Shield, Corner Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

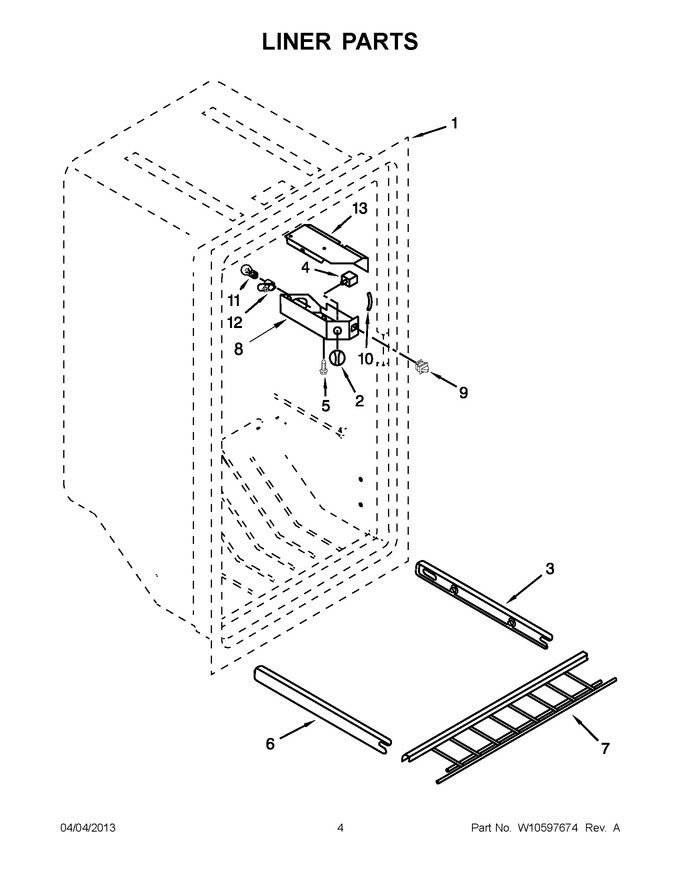

Diagram for EV160FXBQ00
