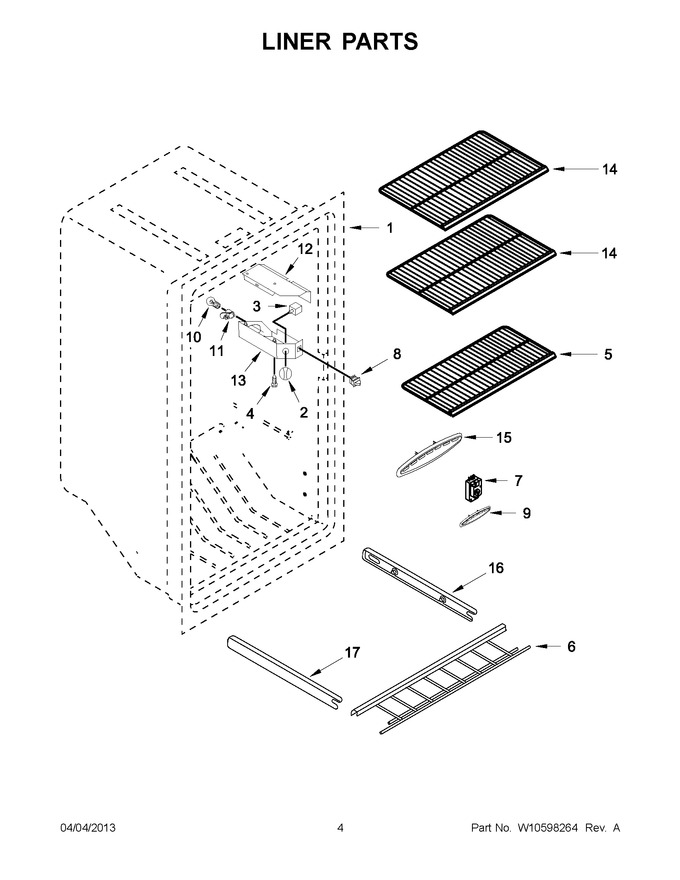

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob, Control |
|
$ 30.10 | |||||
| 3 | WPW10474749 | Thermostat (Replaces: W10474749) |
|
Immediately | $ 229.44 | ||||
| 4 | 3-24004-092 | Screw |
|
$ 4.28 | |||||
| 5 | 4-60637-001 | Shelf, Wire |
|
$ 53.97 | |||||
| 6 | 3-80340-105 | Gate |
|
- | |||||
| 7 | WP3-81329 | Timer, Defrost (Replaces: 3-81329) |
|
Immediately | $ 199.14 | ||||
| 8 | W11384469 | Switch, Light (Replaces: 2-32164-001) |
|
Immediately | $ 39.09 | ||||
| 9 | 4-82573-002 | Air Diffuser, Short |
|
- | |||||
| 10 | 40A15 | Bulb-light (Replaces: 1-34291-002) |
|
Immediately | $ 1.98 | ||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 12 | 3-82392-001 | Shield, Corner Control |
|
- | |||||
| 13 | 4-82389-002 | Housing, Corner Control |
|
$ 39.19 | |||||
| 14 | WP4-60638-001 | Shelf, Wire (Replaces: 4-60638-001) |
|
$ 144.35 | |||||
| 15 | 4-82556-002 | Air Diffuser, Long |
|
- | |||||
| 16 | 4-80576-201 | Support, Right Hand |
|
- | |||||
| 17 | 4-80576-202 | Support, Left Hand |
|
$ 25.63 |
