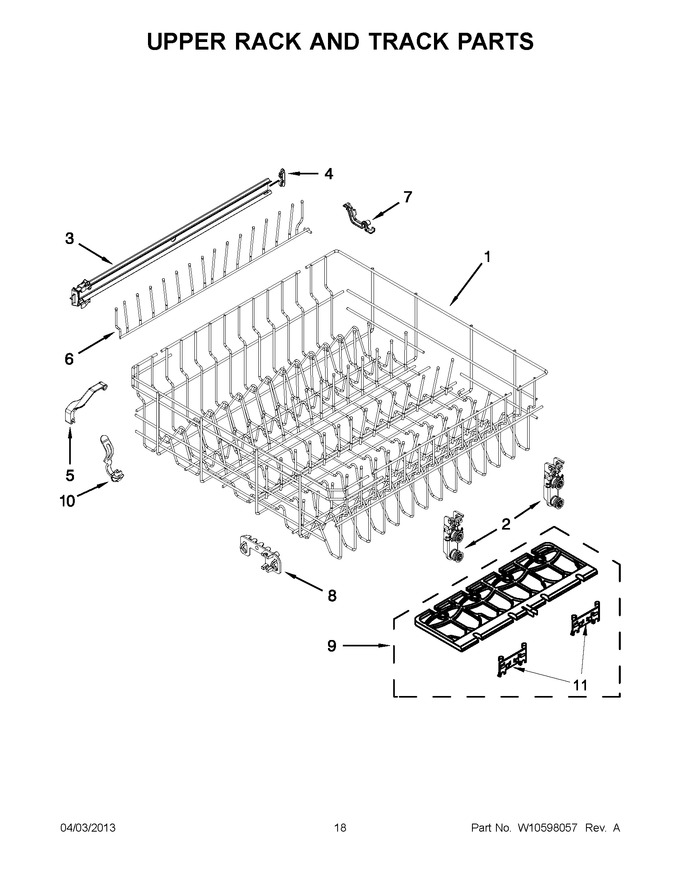

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10350380) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10350401 | Mount, Wheel Fixed 2-position (Replaces: W10350401) |
|
Immediately | $ 60.92 | ||||
| 3 | WPW10195623 | Track Assembly (Replaces: W10195623) |
|
Immediately | $ 53.37 | ||||
| 4 | WPW10195622 | Stop, Track (non-removable) (Replaces: W10195622) |
|
Immediately | $ 10.81 | ||||
| 5 | WPW10254690 | Clip, Dispenser Guard (Replaces: W10254690) |
|
$ 28.70 | |||||
| 6 | W10727426 | Tine Row, Fold Down (Replaces: 8562030) |
|
Immediately | $ 85.10 | ||||
| 7 | WP8539190 | Clip, Pivot (Replaces: 8539190) |
|
$ 88.99 | |||||
| 8 | WP8539119 | Positioner, Dual (Replaces: 8539119) |
|
$ 109.83 | |||||
| 9 | WPW10082810 | Cupshelf Assembly (Replaces: W10082810) |
|
$ 115.41 | |||||
| 10 | WP8539113 | Clip, No Flip (Replaces: 8539113) |
|
$ 11.43 | |||||
| 11 | 8539142 | Clip, Cupshelf |
|
$ 58.65 |
