SELECT A DIAGRAM

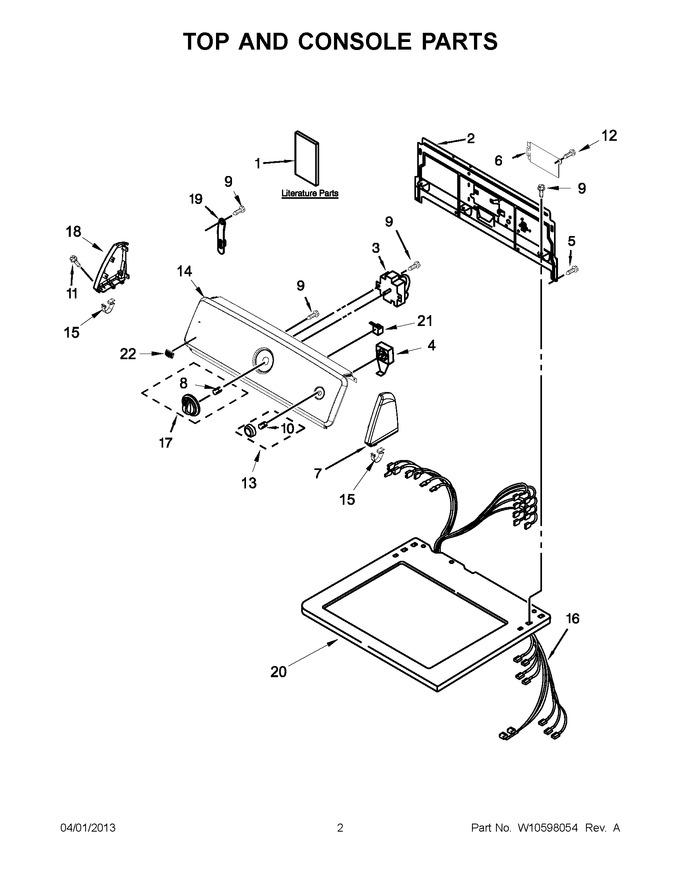

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10462987		Use & Care Guide		Appelez-nous	-
1	W10454272		Installation Instructions		Appelez-nous	-
1	W10474769		Wiring Diagram		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WPW10463283		Timer   (Replaces: W10463283)				$ 279.05
4	WP8543274		Switch, Push-to-start   (Replaces: 8543274)				$ 80.90
5	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
6	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
7	W10193823		End Cap (right) (white)		Appelez-nous	-
8	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
9	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
10	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
12	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
13	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 63.33
14	WPW10474738		Console (white)   (Replaces: W10474738)				$ 270.57
15	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
16	W10450295		Wiring Harness		Appelez-nous	-
17	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 63.47
18	W10193826		End Cap (left) (white)		Appelez-nous	-
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
20	8559781		Top (white)		Appelez-nous	-
21	W10135122		Mini Buzzer (non Adjustable) (with Leads)		Appelez-nous	-
22	W10323734		Assembly, Badge				$ 63.95
