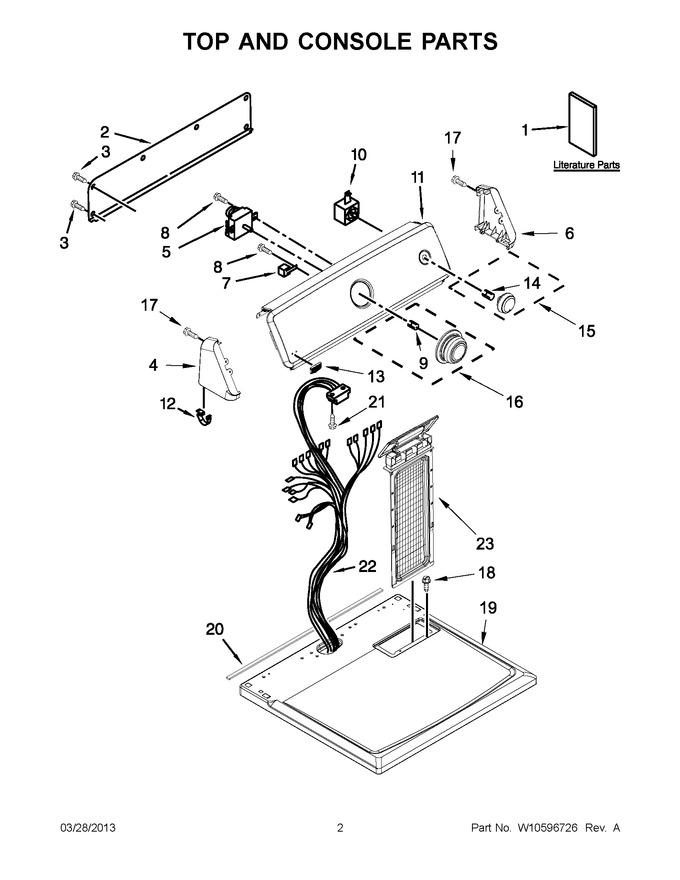

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10396178		Wiring Diagram		Appelez-nous	-
1	W10514189		Installation Instructions		Appelez-nous	-
1	W10454277		Use & Care Guide		Appelez-nous	-
2	W10103406		Panel, Rear (console)				$ 135.31
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 74.39
5	WP8299781		Assembly, Timer (60 Hz.)   (Replaces: 8299781)			Immediately	$ 380.55
6	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 74.72
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
9	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
10	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
11	W10449055		Console (white)		Appelez-nous	-
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W10323734		Assembly, Badge				$ 63.95
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 63.33
16	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 63.47
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
18	WP3395530		Screw   (Replaces: 697773)				$ 8.57
19	8579695		Top (white)		Appelez-nous	-
20	W10316616		Seal, Foam				$ 27.79
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
22	W10450283		Harness, Wiring		Appelez-nous	-
23	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
