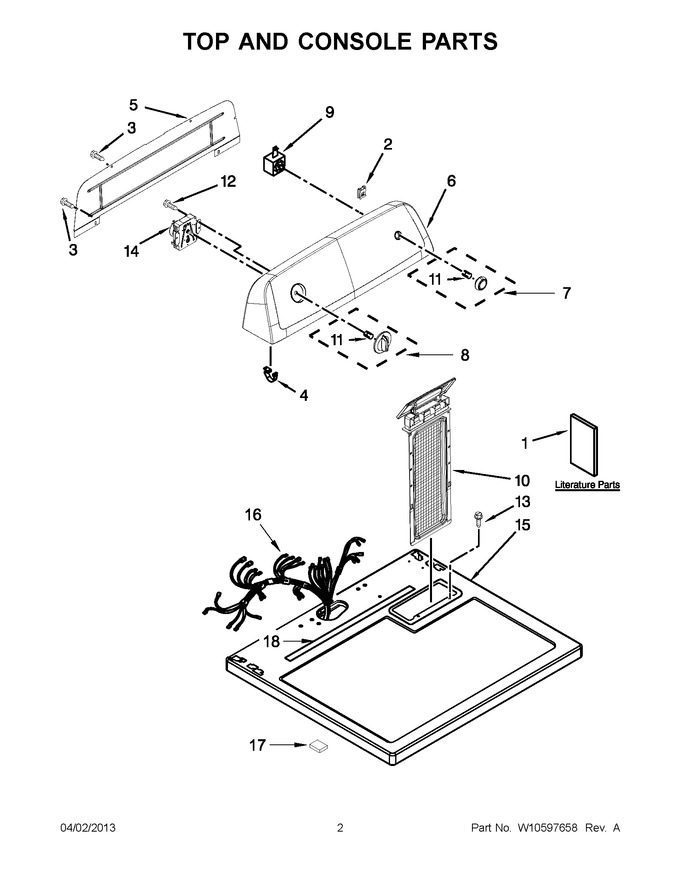

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514172 | Installation Instructions |
|
- | |||||
| 1 | W10185989 | Wiring Diagram |
|
- | |||||
| 1 | W10096991 | Use & Care Guide |
|
- | |||||
| 2 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 8.13 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 132.39 | |||||
| 6 | WPW10295167 | Panel, Control (Replaces: W10295167) |
|
$ 326.78 | |||||
| 7 | WPW10453948 | Knob, Push To Start (white) (Replaces: W10453948) |
|
$ 51.33 | |||||
| 8 | WPW10711289 | Knob, Timer (white) (Replaces: W10453946) |
|
Immediately | $ 8.33 | ||||
| 9 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 30.10 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W11043389 | Timer (Replaces: W10436308) |
|
$ 341.86 | |||||
| 15 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 16 | WPW10450286 | Harness, Wiring (Replaces: W10450286) |
|
$ 246.07 | |||||
| 17 | 3389682 | Spacer, Toe Panel |
|
$ 9.23 | |||||
| 18 | W10316616 | Seal, Foam |
|
$ 27.79 |
