01 - Cabinet Parts

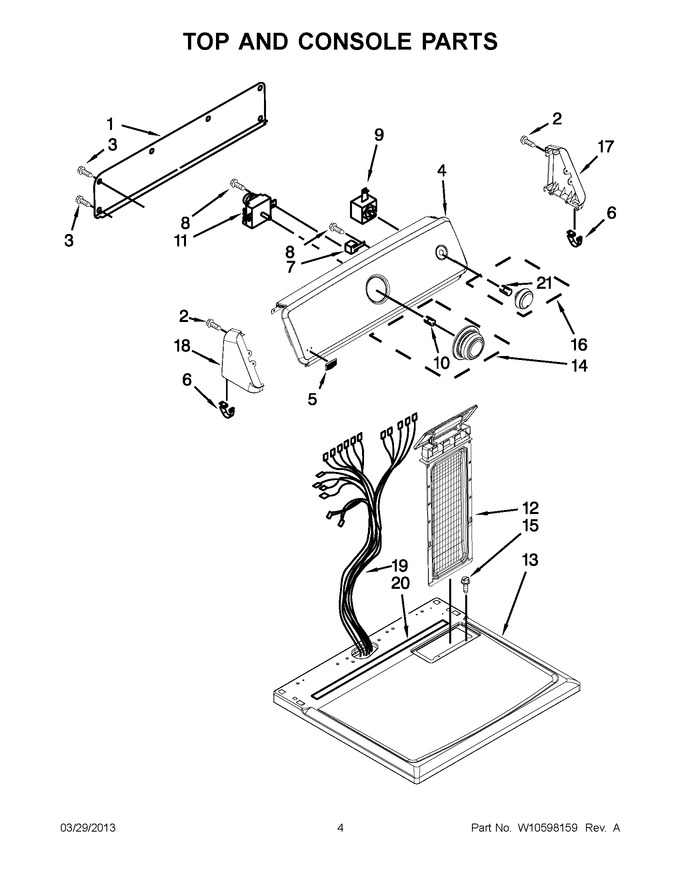

02 - Top And Console Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear (console) |
|
$ 121.78 | |||||
| 2 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W10115474 | Assembly, Console Panel & Bracket |
|
$ 229.16 | |||||
| 5 | W10323734 | Assembly, Badge |
|
$ 57.56 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 9 | WP3404233 | Switch, Push-to-start (Replaces: 3404233) |
|
Immediately | $ 103.59 | ||||
| 10 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 11 | WP8299779 | Timer, 60 Hz. (Replaces: 8299779) |
|
Immediately | $ 345.33 | ||||
| 12 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 49.17 | ||||
| 13 | WPW10225059 | Top (white) (Replaces: W10225059) |
|
$ 225.62 | |||||
| 14 | WPW10317454 | Assembly, Knob & Dial (grey) (Replaces: W10317454) |
|
$ 57.12 | |||||
| 15 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 16 | WPW10317455 | Assembly, Control Knob (grey) (Replaces: W10317455) |
|
$ 57.00 | |||||
| 17 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 67.25 | |||||
| 18 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 66.95 | |||||
| 19 | W10346391 | Harness, Main |
|
- | |||||
| 20 | W10316616 | Seal, Foam |
|
$ 25.01 | |||||
| 21 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 |
