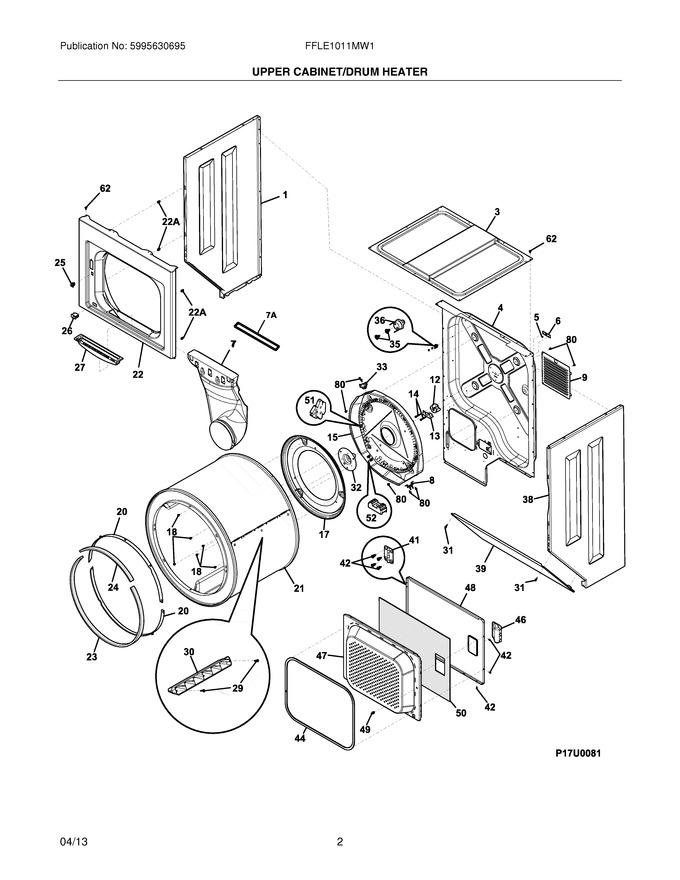

03 - Upper Cabinet/drum/heater
05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137510410 | Panel,left Side ,white |
|
$ 257.36 | |||||
| 3 | 131883301 | Panel,top |
|
$ 307.76 | |||||
| 4 | 137491301 | Panel,rear, Dryer ,stainless |
|
$ 233.57 | |||||
| 5 | 5303281019 | Ball,grounding |
|
$ 18.11 | |||||
| 6 | 5303281020 | Clip,ball ,steel ,flat Nut |
|
$ 18.90 | |||||
| 7 | 5304521121 | Duct,air (Replaces: 134086300) |
|
$ 131.73 | |||||
| 8 | 137032600 | Limiter,thermal ,heater |
|
Immediately | $ 24.44 | ||||
| 9 | 5304488480 | Panel,motor Access ,washed |
|
- | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 12.19 | ||||
| 13 | 131724301 | Bracket,bearing Support (Replaces: 131724300) |
|
Immediately | $ 28.51 | ||||
| 14 | 131205400 | Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive |
|
$ 14.18 | |||||
| 17 | 3204254 | Baffle,heater Shield |
|
$ 143.33 | |||||
| 18 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 15.75 | ||||
| 20 | 137513300 | Glide,flat, Dryer |
|
Immediately | $ 40.75 | ||||
| 21 | 134122509 | Drum, Dryer Svc Kit,galv. Steel |
|
$ 404.20 | |||||
| 22 | 137552110 | Panel,front Weld ,white |
|
$ 356.32 | |||||
| 23 | 5303937183 | Seal,felt ,lower (Replaces: 134134700) |
|
Immediately | $ 39.86 | ||||
| 24 | 5303937182 | Seal,felt ,upper (Replaces: 134036400) |
|
Immediately | $ 36.16 | ||||
| 25 | 131658800 | Door Catch,upper |
|
Immediately | $ 75.98 | ||||
| 27 | 5304516871 | Lint Trap (Replaces: 131359600) |
|
Immediately | $ 46.67 | ||||
| 29 | 131382300 | Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special |
|
Immediately | $ 14.96 | ||||
| 30 | 137552900 | Vane,straight, Low |
|
$ 61.05 | |||||
| 31 | 131202300 | Screw,10-16ab X 0.625 |
|
Immediately | $ 14.96 | ||||
| 32 | 131777700 | Shaft,drum Support ,ballhitch (Replaces: 137088600) |
|
Immediately | $ 79.85 | ||||
| 35 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 38 | 137510510 | Panel,right Side ,white |
|
$ 258.98 | |||||
| 39 | 137546910 | Panel,access |
|
$ 204.65 | |||||
| 41 | 134222900 | Hinge,dryer Door |
|
$ 25.20 | |||||
| 42 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 16.54 | ||||
| 44 | 137551901 | Gasket,door (Replaces: 137551900) |
|
Immediately | $ 45.56 | ||||
| 46 | 131789400 | Handle-door, White |
|
Immediately | $ 70.88 | ||||
| 47 | 137365110 | Panel,inner Door ,white |
|
$ 255.15 | |||||
| 48 | 137408403 | Panel,outer Door ,white |
|
Immediately | $ 215.78 | ||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 22.05 | ||||
| 50 | 134535300 | Insulator,heat Shield ,outer Door |
|
$ 66.94 | |||||
| 51 | 131472100 | Insulator,heater Housing |
|
$ 66.68 | |||||
| 62 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 29.53 | ||||
| 80 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 22A | 137362600 | Pin,panel Locator |
|
$ 39.38 | |||||
| 7A | 131295200 | Seal-air Duct |
|
$ 18.11 | |||||
| F15 | 137392700 | Heater Asmy W/hsg,w/thermistor (Replaces: 137565600) |
|
Immediately | $ 228.71 | ||||
| F26 | 134813600 | Switch,door |
|
Immediately | $ 47.88 | ||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 59.43 | ||||
| F36 | 134120900 | Thermal Limiter |
|
Immediately | $ 14.68 | ||||
| F38A | 137604900 | Seal,exhaust Tube |
|
- | |||||
| F52 | 3202786 | Terminal Block,heater Housing |
|
$ 71.66 | |||||
| FNI | 137328900 | Wiring Harness,door Switch ,w/o Light |
|
Immediately | $ 51.41 | ||||
| NI | 137576600 | Plug-light Hole (Replaces: 131870700) |
|
Immediately | $ 15.75 |
