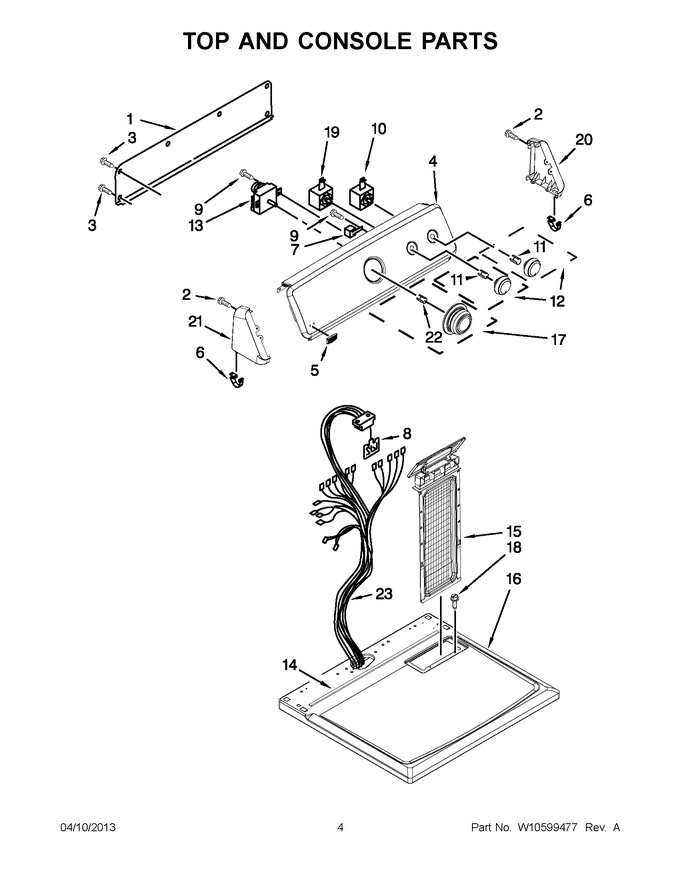

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear (console)				$ 121.78
2	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10115475		Assembly, Console Panel & Bracket				$ 224.85
5	W10323734		Assembly, Badge				$ 57.56
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 57.00
13	WP8566184		Assembly, Timer (60 Hz.)   (Replaces: 8566184)			Immediately	$ 263.09
14	W10316616		Seal, Foam				$ 25.01
15	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 49.17
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 225.62
17	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 57.12
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	WP8578354		Switch, Rotary Temperature   (Replaces: 8578354)			Immediately	$ 229.00
20	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
21	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
22	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
23	W10346386		Harness, Wiring		Appelez-nous	-
