01 - Top And Cabinet Parts

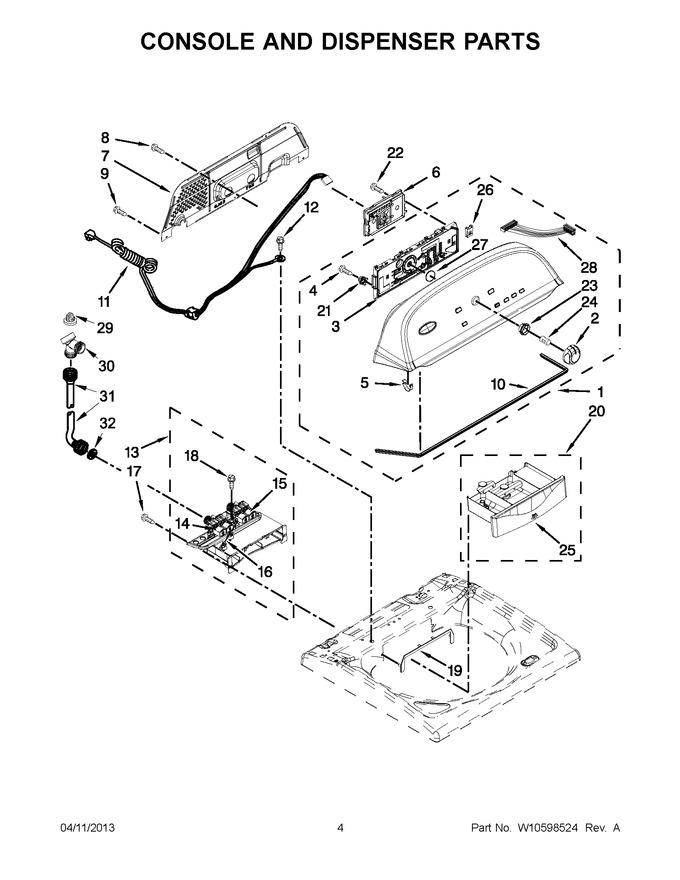

02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10452906 | Console (Replaces: W10452906) |
|
$ 421.88 | |||||
| 2 | WPW10251392 | Assembly, Knob (Replaces: W10251392) |
|
$ 53.60 | |||||
| 3 | W10269602 | User Interface |
|
$ 240.19 | |||||
| 4 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W10544136 | Control Unit Assembly, Machine & Motor |
|
$ 260.55 | |||||
| 7 | W10420984 | Panel, Console Rear Cover |
|
$ 310.35 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 9 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 10 | W10280079 | Seal, Console |
|
- | |||||
| 11 | WPW10525195 | Cord-power (Replaces: W10525195) |
|
$ 129.53 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11158805 | Housing Assembly (Replaces: W10432327) |
|
Immediately | $ 343.27 | ||||
| 14 | W11168740 | Valve, Cold Water Inlet (Replaces: W10240949) |
|
Immediately | $ 166.92 | ||||
| 15 | W11168743 | Valve, Hot Water Inlet (Replaces: W10240948) |
|
Immediately | $ 122.38 | ||||
| 16 | W10240967 | Harness, Valve (Replaces: W10343675) |
|
$ 161.14 | |||||
| 17 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 18 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 19 | W10240946 | Bezel, Dispenser |
|
$ 23.60 | |||||
| 20 | WPW10658443 | Drawer, Dispenser Assembly (Replaces: W10240958) |
|
$ 103.41 | |||||
| 21 | W10274524 | Tensioner Fascia |
|
- | |||||
| 22 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 23 | W10325119 | Spacer, Knob |
|
- | |||||
| 24 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 25 | WPW10287476 | Facia, Dispenser (Replaces: W10287476) |
|
$ 58.61 | |||||
| 26 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 7.32 | |||||
| 27 | W10323092 | Seal, User Interface |
|
- | |||||
| 28 | W10285493 | Cable, User Interface |
|
$ 95.13 | |||||
| 29 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 8.72 | ||||
| 30 | WPW10269488 | Connector, Hose -``y`` (Replaces: W10269488) |
|
$ 80.68 | |||||
| 31 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 31 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194211) |
|
Immediately | $ 21.68 | ||||
| 32 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.34 |
