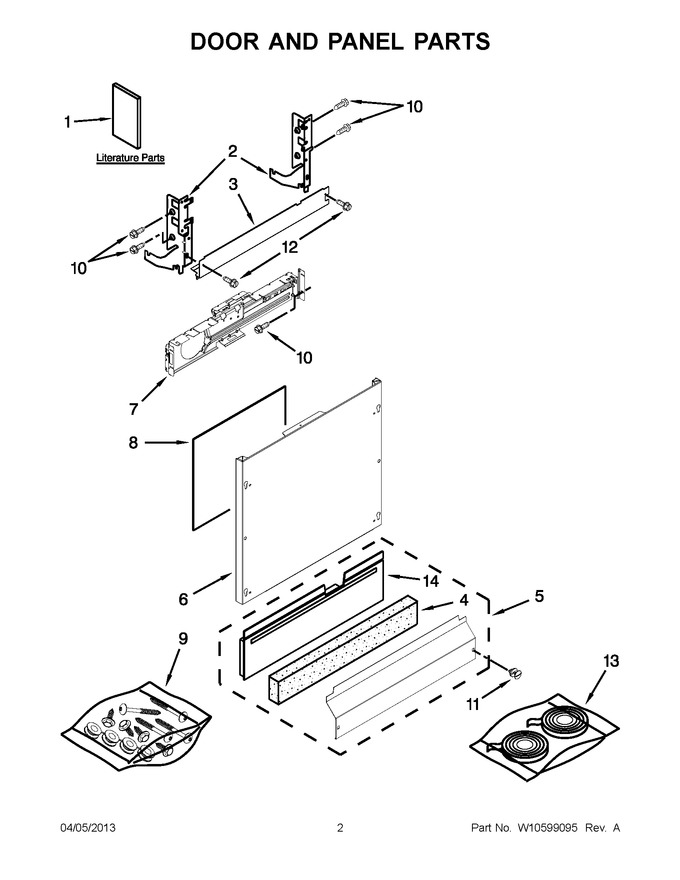

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10580510 | Tech Sheet, French |
|
- | |||||
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 1 | W10195005 | Template, 6`` Custom Panel |
|
- | |||||
| 1 | W10490721 | Energy Guide |
|
- | |||||
| 1 | W10300928 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10300596 | Use & Care Guide (spanish) |
|
- | |||||
| 1 | W10580509 | Tech Sheet, English |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 29.59 | ||||
| 4 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 38.97 | ||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10368715) |
|
Immediately | $ 163.77 | ||||
| 6 | W11113792 | Panel Front (ready) (Replaces: W10292632) |
|
Immediately | $ 336.08 | ||||
| 7 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 80.96 | |||||
| 8 | W10234565 | Insulation Front Panel |
|
$ 62.61 | |||||
| 9 | WPW10637074 | Hardware, Custom Panel (Replaces: W10195008) |
|
Immediately | $ 67.55 | ||||
| 10 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 27.35 | ||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 13 | WPW10366978 | Seal, Panel Ready (Replaces: W10366978) |
|
Immediately | $ 26.82 | ||||
| 14 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 38.97 |
