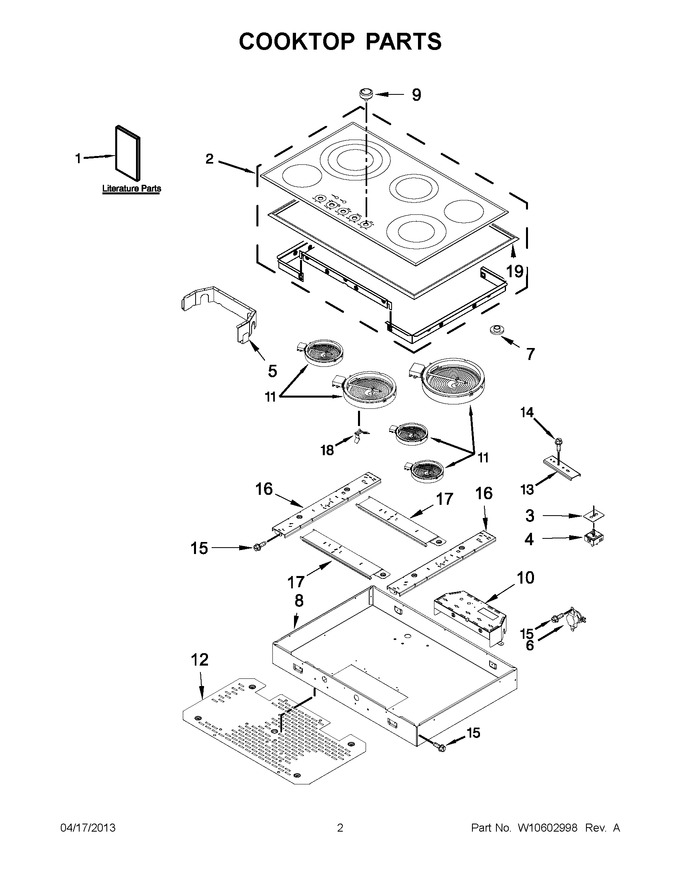

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10448459 | Diagram, Wiring |
|
- | |||||
| 1 | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1 | W10550660 | Use & Care Guide |
|
- | |||||
| 1 | W10574205 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10570697 | Cooktop (black) |
|
$ 756.55 | |||||
| 2 | W10422111 | Cooktop (stainless) |
|
$ 713.24 | |||||
| 3 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 4 | WPW10295048 | Switch, Infinite (left Front) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 4 | WPW10441696 | Switch, Infinite (right Front & Center) (Replaces: W10441696) |
|
Immediately | $ 112.10 | ||||
| 4 | W10543904 | Switch, Infinite (left Rear) |
|
$ 219.15 | |||||
| 4 | WPW10462778 | Switch, Infinite (right Rear) (Replaces: W10462778) |
|
$ 151.70 | |||||
| 5 | W10480493 | Shield, Cooktop |
|
- | |||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 7 | W11568604 | Grommet, Cooktop (stainless) (Replaces: W10559483) |
|
Immediately | $ 46.86 | ||||
| 7 | W11447840 | Grommet, Cooktop (black) (Replaces: W10559484) |
|
Immediately | $ 37.66 | ||||
| 8 | W10340197 | Box-burner |
|
- | |||||
| 9 | W10559480 | Assembly, Knob (black) |
|
$ 128.55 | |||||
| 9 | W11747587 | Assembly, Knob (stainless) (Replaces: W10559479) |
|
$ 63.00 | |||||
| 10 | W10340207 | Plate, Switch |
|
- | |||||
| 11 | WPW10342780 | Element (1300w) (right Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 11 | WPW10245533 | Element (2000/1000w) (center) (Replaces: W10245533) |
|
$ 260.21 | |||||
| 11 | W10823720 | Element (3000w) (left Rear) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 11 | WPW10270604 | Element (700w) (left Front) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 11 | WPW10275049 | Element (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 12 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | W10457926 | Rail, Vertical |
|
- | |||||
| 17 | W10340199 | Rail, Horizontal |
|
- | |||||
| 18 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 19 | W10422109 | Assembly, Trim (for Stainless Models) |
|
Immediately | $ 380.17 |
