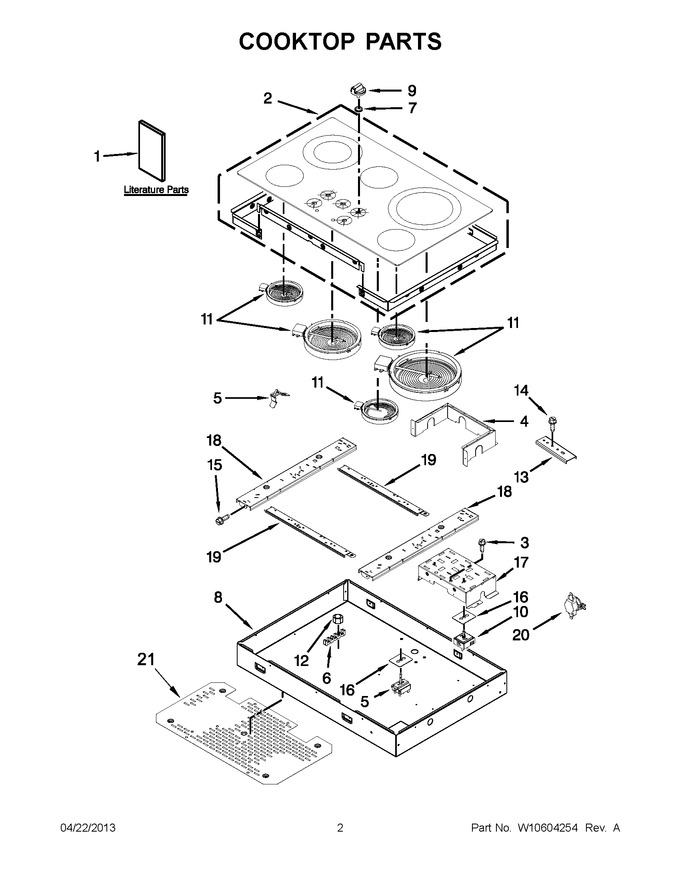

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574205 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1 | W10550659 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10488785 | Diagram, Wiring |
|
- | |||||
| 2 | W10570704 | Cooktop (stainless) (Replaces: W10570705) |
|
$ 623.84 | |||||
| 2 | W10570704 | Cooktop (black) |
|
$ 623.84 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 13.73 | ||||
| 4 | W10480494 | Shield, Cooktop |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.82 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 7 | WPW10293874 | Grommet, Switch (Replaces: W10293874) |
|
Immediately | $ 7.61 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W10480479 | Knob (stainless) |
|
- | |||||
| 9 | W10480478 | Knob (black) |
|
$ 85.83 | |||||
| 10 | WP74007840 | Switch, Infinite (left Front & Right Front) (Replaces: 7403P755-60) |
|
Immediately | $ 171.41 | ||||
| 10 | WPW10434447 | Switch, Infinite (left Rear & Right Rear) (Replaces: W10434447) |
|
$ 140.60 | |||||
| 10 | WPW10295048 | Switch, Infinite (center) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 11 | W11171119 | Element (1200w) (left Front & Right Front) (Replaces: 8273994) |
|
Immediately | $ 213.20 | ||||
| 11 | WPW10270604 | Element (700w) (center) (Replaces: W10270604) |
|
$ 201.13 | |||||
| 11 | WPW10189281 | Element (3000w) (right Rear) (Replaces: W10189281) |
|
Immediately | $ 339.79 | ||||
| 11 | W11517959 | Element (1400w) (left Rear) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 12 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 17 | W11215839 | Plate, Switch (Replaces: W10291159) |
|
- | |||||
| 18 | W10311788 | Rail, Vertical |
|
- | |||||
| 19 | W10311793 | Rail, Horizontal |
|
- | |||||
| 20 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 176.19 | ||||
| 21 | W10422069 | Bottom, Heat Shield |
|
- |
