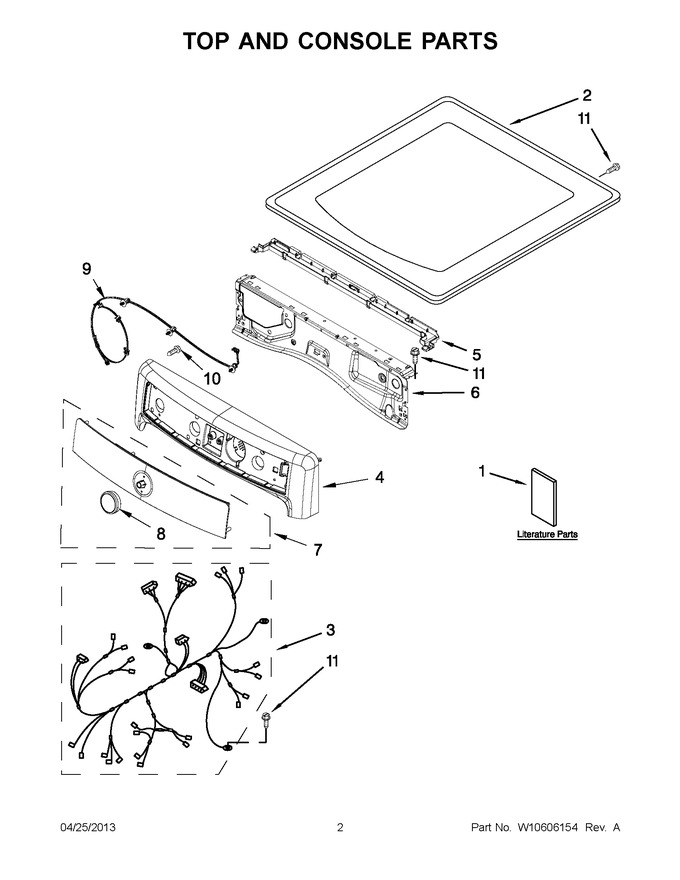

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10529646 | Use & Care Guide |
|
- | |||||
| 1 | W10492242 | Tech Sheet |
|
- | |||||
| 1 | W10558994 | Installation Instructions |
|
- | |||||
| 1 | W10504398 | Wiring Diagram |
|
- | |||||
| 2 | W10301057 | Top (granite) |
|
$ 139.14 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10526663 | Main, Wiring Harness |
|
$ 306.17 | |||||
| 4 | W10545324 | Console Assembly (granite) |
|
- | |||||
| 4 | W10489583 | Console Assembly (white) |
|
$ 615.66 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | WPW10491032 | Iml Assembly (white) (Replaces: W10491032) |
|
$ 900.59 | |||||
| 7 | W10545317 | Iml Assembly (granite) |
|
$ 742.01 | |||||
| 8 | W10853910 | Assembly, Control Knob (white) (Replaces: W10519048) |
|
$ 53.94 | |||||
| 9 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 13.27 | ||||
| 10 | W10489172 | Screw |
|
$ 11.98 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 |
