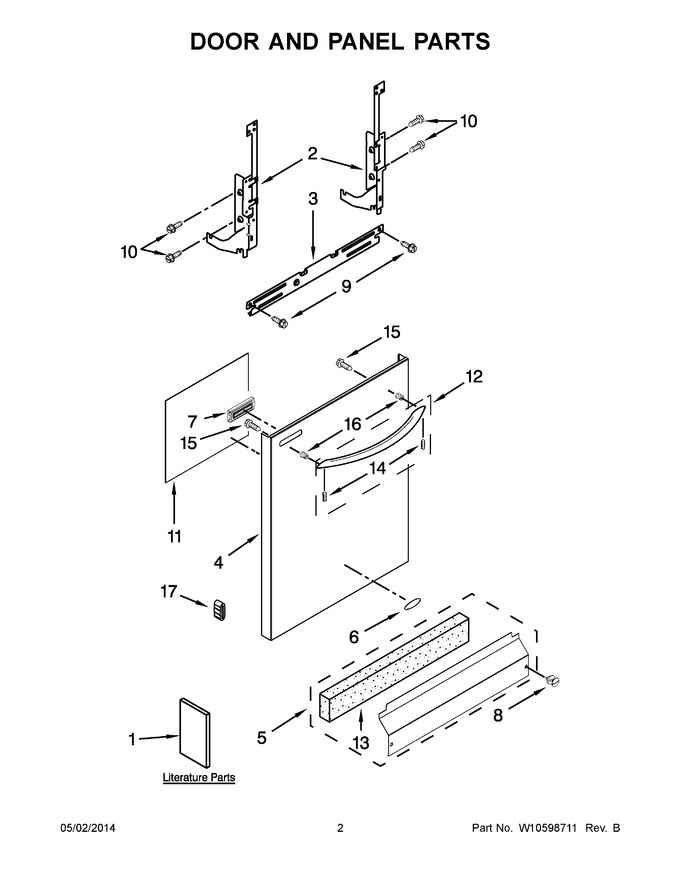

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10435040 | Installation Instructions |
|
- | |||||
| 1 | W10596231 | Use & Care Guide, English/french |
|
- | |||||
| 1 | W10580720 | Tech Sheet, English |
|
- | |||||
| 1 | W10580729 | Tech Sheet, French |
|
- | |||||
| 1 | W10638466 | Energy Guide |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right Hand) (Replaces: W10274921) |
|
Immediately | $ 75.54 | ||||
| 2 | W11806566 | Arm, Hinge (left Hand) (Replaces: W10274922) |
|
Immediately | $ 64.59 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 29.59 | ||||
| 4 | W10350168 | Panel Front (includes 6, 7, 15 & 16) (white) |
|
$ 148.37 | |||||
| 4 | W10350167 | Panel Front (includes 6, 7, 15 & 16) (black) |
|
$ 142.15 | |||||
| 4 | W10350170 | Panel Front (includes 6, 7, 15 & 16) (stainless) |
|
$ 165.67 | |||||
| 5 | W10827632 | Access Panel (white) (Replaces: W10369025) |
|
Immediately | $ 147.33 | ||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369023) |
|
Immediately | $ 176.08 | ||||
| 6 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 60.97 | |||||
| 6 | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 56.82 | ||||
| 7 | W10300674 | Vent (black) |
|
$ 50.36 | |||||
| 7 | W10300675 | Vent (white) |
|
$ 34.13 | |||||
| 8 | WPW10503549 | Screw (white) (Replaces: W10503549) |
|
Immediately | $ 6.99 | ||||
| 8 | WPW10503548 | Screw (black) (Replaces: W10503548) |
|
Immediately | $ 27.35 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 7.92 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 58.73 | ||||
| 12 | W10873050 | Handle Assembly (black) (Replaces: W10330967) |
|
$ 159.51 | |||||
| 12 | W10330970 | Handle Assembly (stainless) |
|
- | |||||
| 12 | W10873052 | Handle Assembly (white) (Replaces: W10330968) |
|
$ 154.11 | |||||
| 13 | W10831329 | Insulation, Toe Panel (Replaces: W10300769) |
|
Immediately | $ 38.97 | ||||
| 14 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 8.43 | |||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 16 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 7.98 | ||||
| 17 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 6.01 |
