01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

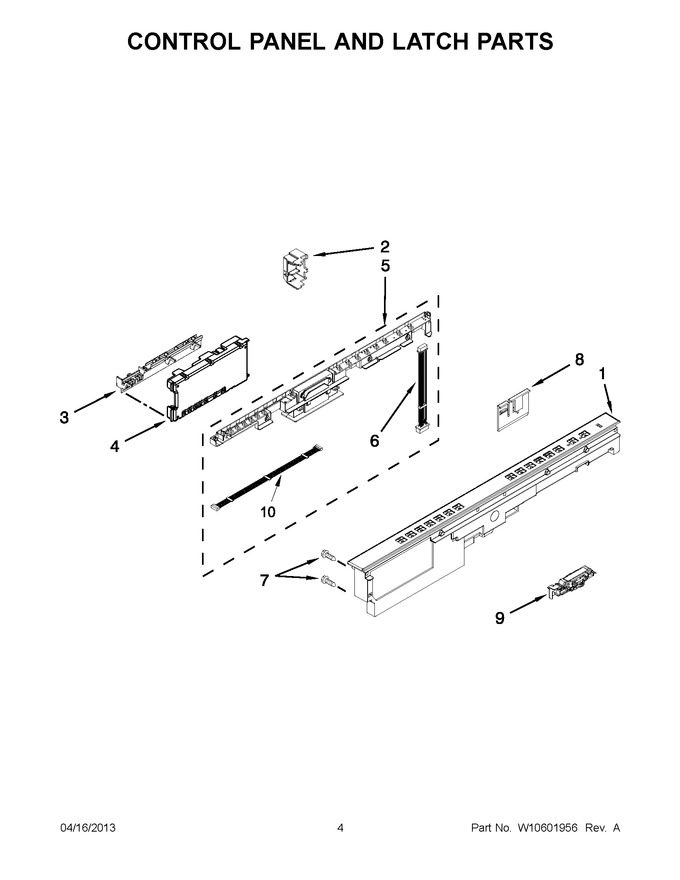

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10380069		Console Assembly (includes Insert) (black)   (Replaces: W10350255)				$ 244.51
1	W10380070		Console Assembly (includes Insert) (white)   (Replaces: W10350256)				$ 217.46
1	WPW10380071		Console Assembly (includes Insert) (silver)   (Replaces: W10350257)				$ 207.47
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
4	W10595569		Control, Electronic   (Replaces: W10539784)			Immediately	$ 311.61
5	WPW10629159		Housing Assembly, User Interface   (Replaces: W10350264)				$ 318.84
6	W10300781		Jumper, 16-wire				$ 33.20
7	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
8	W11256107		Clip. Control   (Replaces: W10195237)				$ 23.27
9	W10619006		Latch Assembly (includes Switch)   (Replaces: W10550100)			Immediately	$ 39.09
10	W10347251		Jumper, 10-wire				$ 11.62
