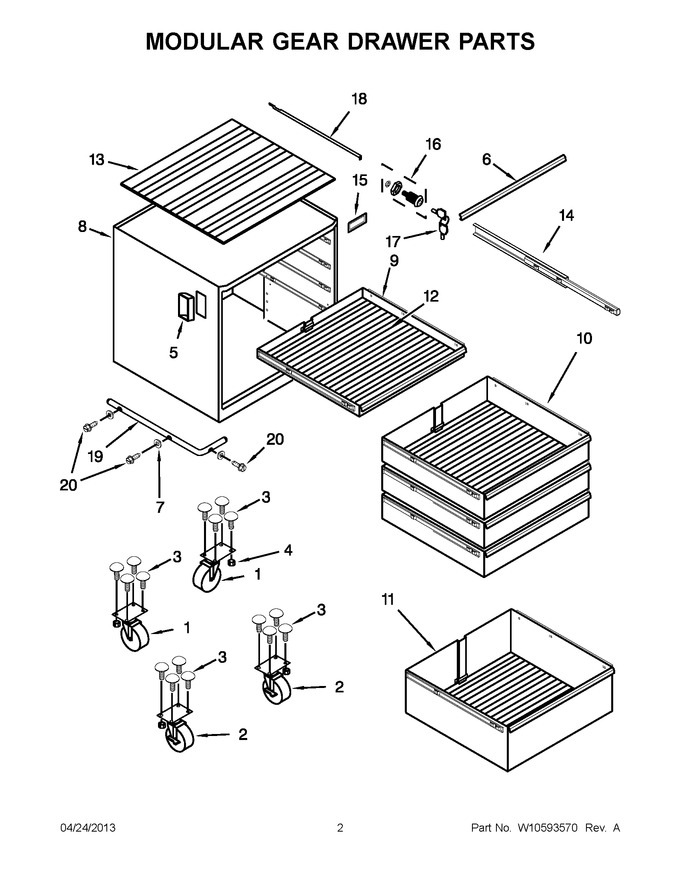

01 - Modular Gear Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8204601		Caster, Swivel 5``   (Replaces: 8204601)				$ 76.42
2	W10741533		Caster, Rigid 5`` With Brake (left Hand)   (Replaces: 8211251)		Appelez-nous	-
2	8211250		Caster, Rigid 5`` With Brake (right Hand)				$ 40.15
3	WP8204609		Bolt   (Replaces: 8204609)				$ 69.70
4	WP8204610		Nut, Nylon   (Replaces: 8204610)				$ 12.39
5	W10554069		Handle, Door		Appelez-nous	-
6	W11321875		Trim, Door   (Replaces: W10567726)		Appelez-nous	-
7	WP8211254		Washer   (Replaces: 8211254)				$ 9.30
8	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	W10554083		Tray And Guide, 2`` Drawer		Appelez-nous	-
10	W10554085		Tray And Guide, 4`` Drawer		Appelez-nous	-
11	W10554086		Tray And Guide, 8`` Drawer		Appelez-nous	-
12	WP8204604		Liner, Drawer   (Replaces: 8204604)				$ 85.94
13	8204605		Mat, Top		Appelez-nous	-
14	WP8211252		Slide, Drawer   (Replaces: 8211252)				$ 84.70
15	W10554071		Nameplate, Gladiator		Appelez-nous	-
16	W11557659		Lock Assembly   (Replaces: 8204607)				$ 63.98
17	W11383363		Keys   (Replaces: 8204608)				$ 7.31
18	8211226		Keybar		Appelez-nous	-
19	W10554087		Bumper		Appelez-nous	-
20	W11513230		Screw   (Replaces: W10554088)		Appelez-nous	-
