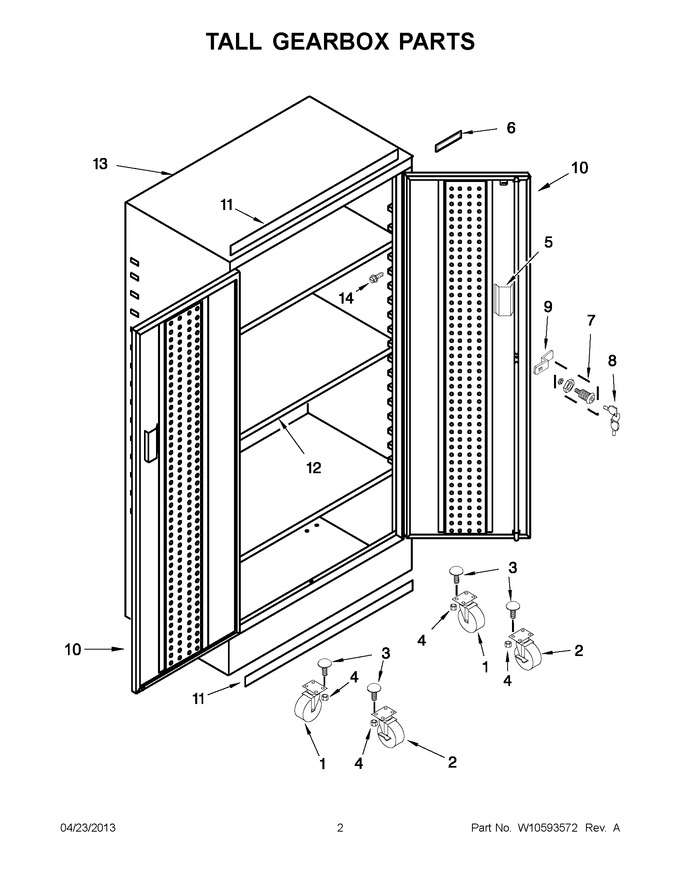

01 - Tall Gearbox Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8204601		Caster, Swivel 5``   (Replaces: 8204601)				$ 76.42
2	8211250		Caster, Rigid 5`` With Brake (right Hand)				$ 40.15
2	W10741533		Caster, Rigid 5`` With Brake (left Hand)   (Replaces: 8211251)		Appelez-nous	-
3	WP8204609		Bolt   (Replaces: 8204609)				$ 69.70
4	WP8204610		Nut, Nylon   (Replaces: 8204610)				$ 12.39
5	W10554069		Handle, Door		Appelez-nous	-
6	W10554070		Nameplate, Gladiator		Appelez-nous	-
7	W11557659		Lock Assembly   (Replaces: 8204607)				$ 63.98
8	W11383363		Keys   (Replaces: 8204608)				$ 7.31
9	W10554097		Cam		Appelez-nous	-
10	W10554093		Door (includes Handle) (right Hand)		Appelez-nous	-
10	W10554094		Door (includes Handle) (left Hand)		Appelez-nous	-
11	W11241073		Magnet   (Replaces: 8211281)		Appelez-nous	-
12	W10554095		Shelf, Full				$ 200.68
13	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	WPW10001180		Screw   (Replaces: 8204616)				$ 8.05
