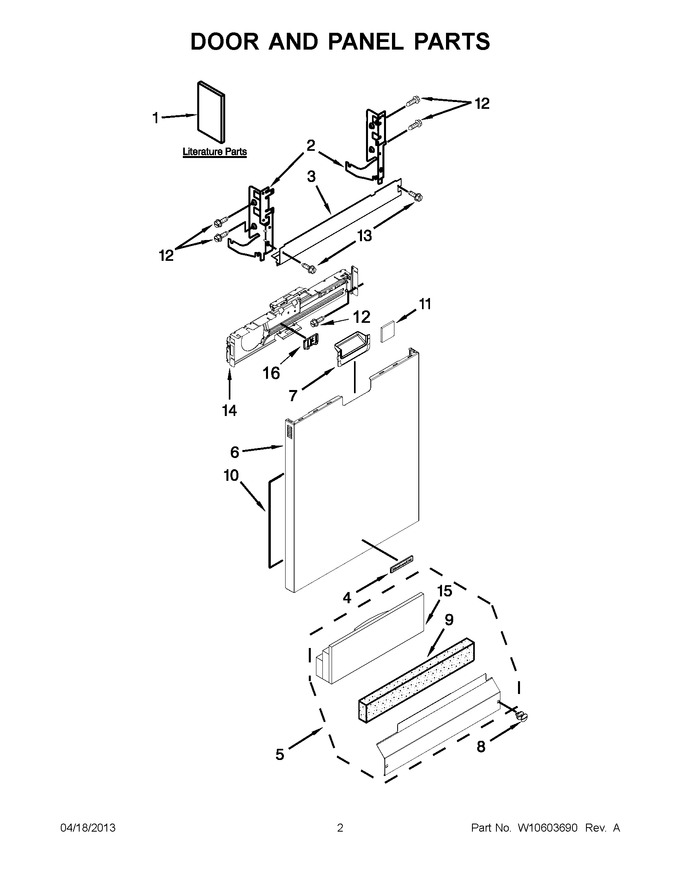

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10455258		Tech Sheet, French		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10591304		Energy Guide		Appelez-nous	-
1	W10584053		Instructions, Installation Energy Guide		Appelez-nous	-
1	W10584054		Use & Care Guide, Spanish		Appelez-nous	-
1	W10455257		Tech Sheet, English		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 29.59
4	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 52.48
5	WPW10526114		Access Panel (black)   (Replaces: W10368715)			Immediately	$ 163.77
6	W10195531		Front Panel (includes Items 4 & 7) (stainless)				$ 185.43
7	W10563099		Pocket, Handle (stainless)   (Replaces: W10195656)				$ 133.91
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
9	W10831329		Insulation, Toe Panel   (Replaces: W10385107)			Immediately	$ 38.97
10	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 58.73
11	W10354790		Block, Foam				$ 11.38
12	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
14	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 80.96
15	W10831329		Insulation, Three Layer   (Replaces: W10350437)			Immediately	$ 38.97
16	W10463662		Spacer, Control Bracket Panel				$ 44.47
