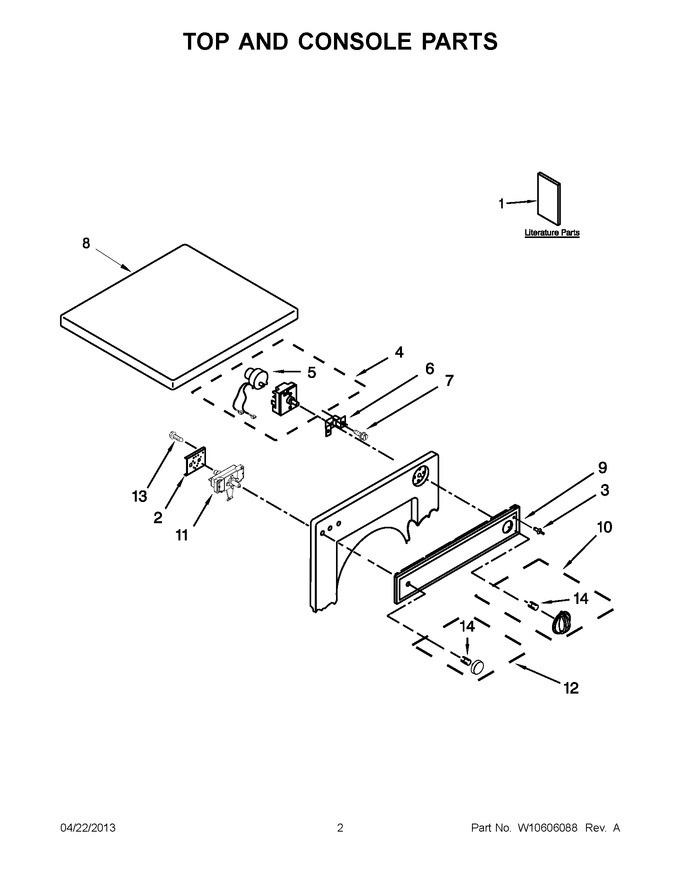

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8578198 | Use & Care Guide |
|
- | |||||
| 1 | W10392461 | Energy Guide |
|
- | |||||
| 2 | 3406860 | Bracket, Front Panel |
|
- | |||||
| 3 | 307563 | Rivet, Pop |
|
- | |||||
| 4 | WP8563881 | Timer, 60 Hz. (Replaces: 8563881) |
|
$ 367.99 | |||||
| 5 | N/P | (timer Motor Not Serviceable) |
|
- | |||||
| 6 | 348171 | Bracket, Timer |
|
- | |||||
| 7 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 8 | 345703 | Top (white) |
|
$ 261.58 | |||||
| 9 | W11300601 | Panel, Control (Replaces: 8562101) |
|
$ 354.54 | |||||
| 10 | 8544955 | Assembly, Timer Knob (white) |
|
$ 41.86 | |||||
| 11 | WPW10503561 | Switch, Push-to-start (Replaces: W10503561) |
|
Immediately | $ 39.45 | ||||
| 12 | WP8544939 | Knob, Push To Start (white) (Replaces: 8544939) |
|
$ 52.44 | |||||
| 13 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 |
