01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

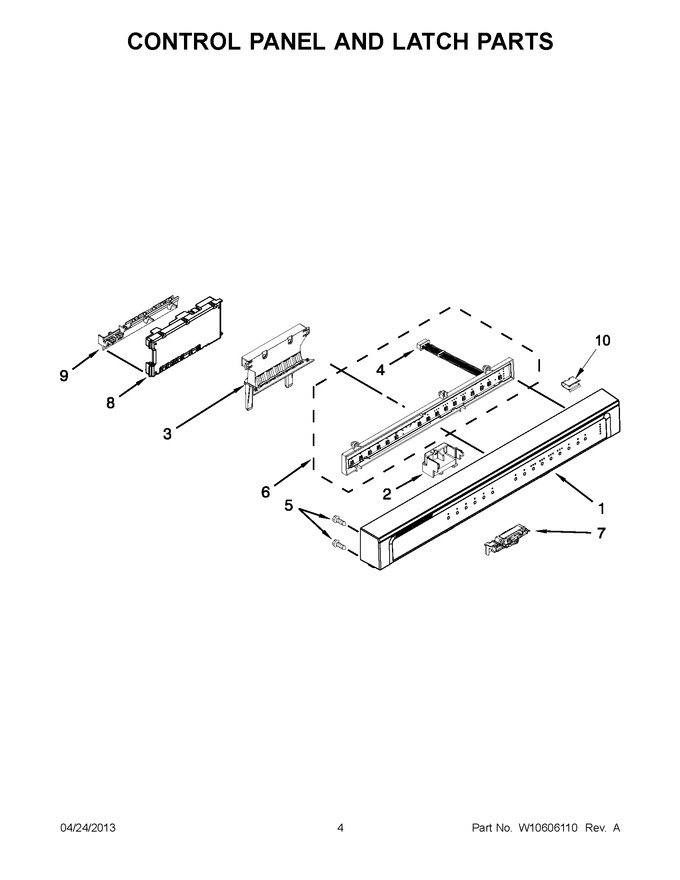

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10380295		Console Assembly (also Includes Insert) (black)   (Replaces: W10505579)		Appelez-nous	-
1	W10380296		Console Assembly (also Includes Insert) (white)   (Replaces: W10505580)				$ 176.39
1	WPW10380298		Console Assembly (also Includes Insert) (stainless)   (Replaces: W10505582)				$ 109.95
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 28.27
3	W10475758		Handle Pocket (white)   (Replaces: W10475759)				$ 18.63
3	W10475758		Handle Pocket (black)				$ 18.63
4	W10552538		Jumper, Wire		Appelez-nous	-
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.22
6	WPW10629164		Housing, User Interface   (Replaces: W10440703)				$ 360.64
7	W10619006		Latch Assembly (includes Switch)   (Replaces: W10550100)			Immediately	$ 35.18
8	W10596620		Control, Electronic		Appelez-nous	-
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 27.50
10	W10815836		Clip, Panel   (Replaces: W10485367)				$ 7.43

    View Diagram in Separate Window       Print Part List
