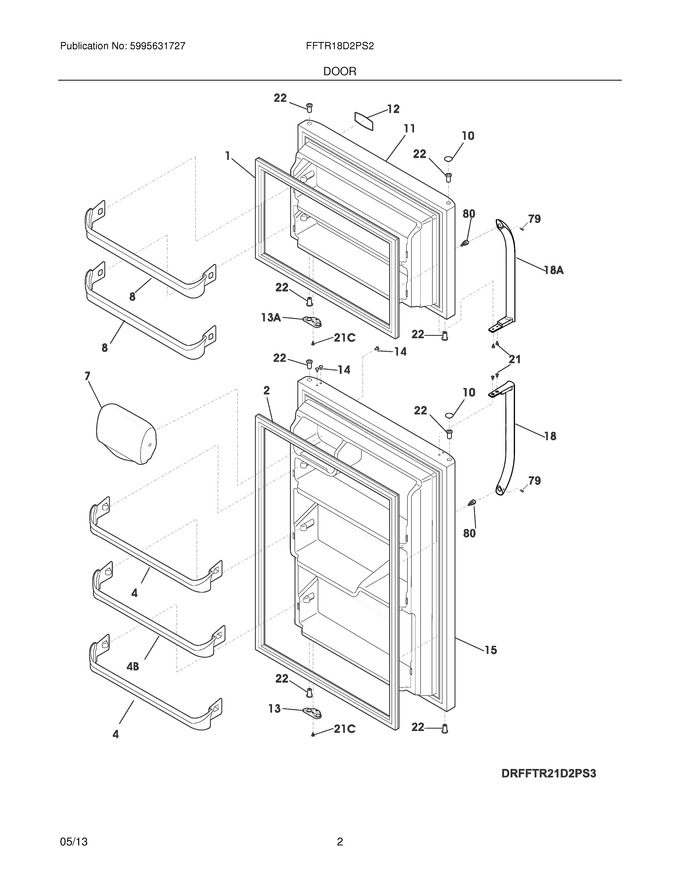

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240534901		Rack-door			Immediately	$ 52.25
7	240337712		Door-dairy			Immediately	$ 40.45
8	240534801		Rack-door			Immediately	$ 55.13
10	240381307		Plug-button,silver Mist ,hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 18.54
11	240410206		Door-frzr,stainless ,complete Assy				$ 701.19
12	242016301		Nameplate,frigidaire				$ 4.73
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 16.85
14	240494006		Plug-button,silver Mist				$ 19.69
15	242178112		Door-refr,stainless ,complete Assy   (Replaces: 240410309)				$ 663.97
18	242075501		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 242075202)				$ 259.53
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 8.43
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop,black ,frzr				$ 23.63
18A	242075501		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 242075201)				$ 259.53
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
4B	240534701		Rack-door,4b			Immediately	$ 32.00
F1	241872509		Gasket-frzr Door,black ,magnetic			Immediately	$ 182.39
F2	241872512		Gasket-refr Door,black ,magnetic			Immediately	$ 183.77
NI	241601001		Wrench,allen		Appelez-nous	-
NI	241701901		Screw Driver		Appelez-nous	-
