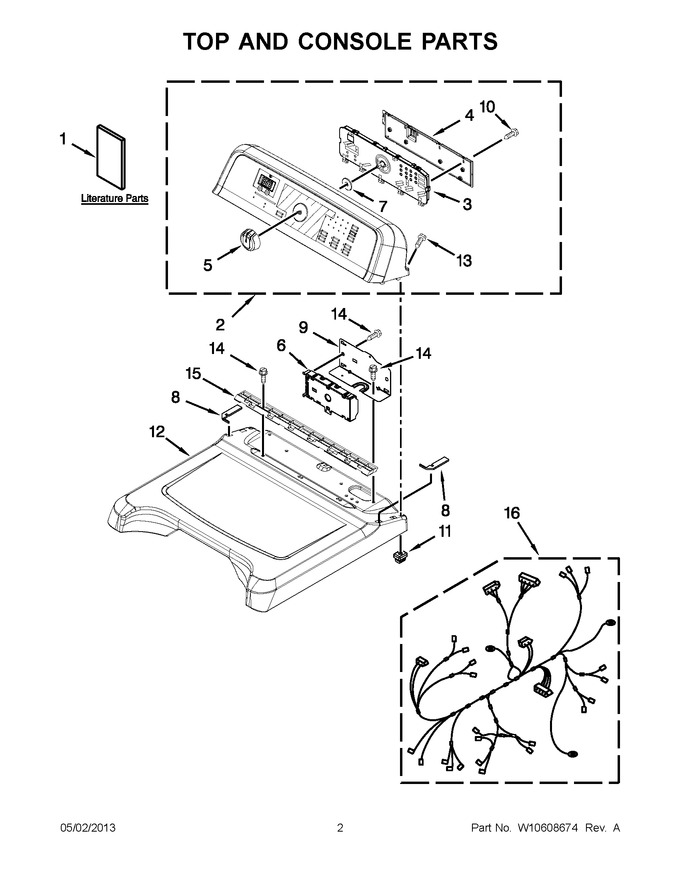

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10388780		Guide, Use & Care		Appelez-nous	-
1	W10393006		Sheet, Tech		Appelez-nous	-
1	W10392124		Instructions, Installation		Appelez-nous	-
2	W10338346		Panel, Console (white)				$ 328.53
2	W10338347		Panel, Console (cosmetallic)				$ 339.97
3	WPW10388669		Assembly, User Interface   (Replaces: W10388669)				$ 233.22
4	W10051124		Cover, Ui Rear				$ 263.67
5	WPW10338554		Knob, Control   (Replaces: W10338554)				$ 64.58
6	WPW10432257		Control, Electronic   (Replaces: W10432257)			Immediately	$ 333.62
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10219694		Seal, Top (right)		Appelez-nous	-
8	W10219695		Seal, Top (left)		Appelez-nous	-
9	8563853		Bracket-machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Clip, Console				$ 9.75
12	W10338836		Top (includes Item 8) (cosmetallic)				$ 142.15
12	W10223157		Top (includes Item 8) (white)				$ 159.40
13	W10131402		Screw		Appelez-nous	-
14	WP33001882		Screw   (Replaces: 337686)				$ 83.71
15	8558863		Bracket, Console				$ 33.78
16	W10319802		Harness, Main		Appelez-nous	-
