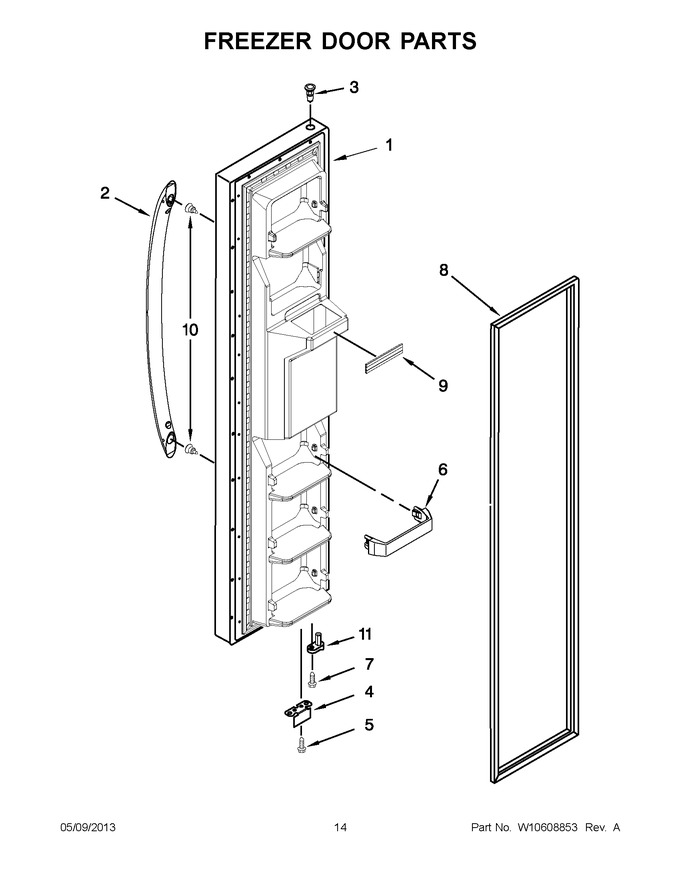

07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Control Box Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10543565		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10543566		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10543567		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 174.11
2	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 254.15
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 174.11
3	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
4	2306940B		Bracket, Door Stop (black)				$ 38.97
4	2306940		Bracket, Door Stop (silver)				$ 101.93
5	WP489483		Screw   (Replaces: 489420)				$ 11.41
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159074		Door Gasket, Magnetic (beige)   (Replaces: 2309532)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	WP2223752		Door Closer, Upper Cam (black)   (Replaces: 2223752)				$ 21.16
