SELECT A DIAGRAM

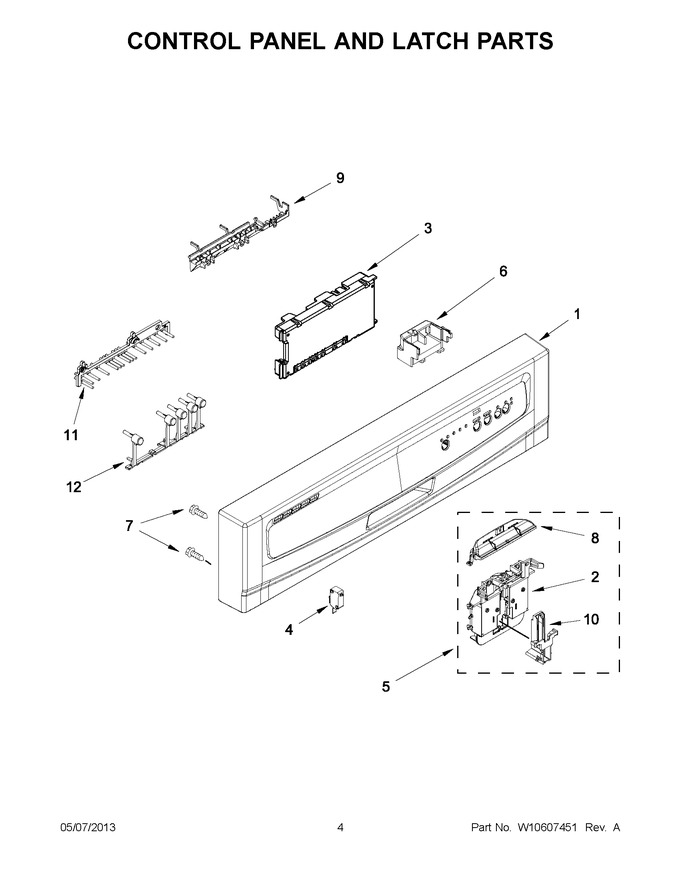

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10475825		Console Assembly (includes Active Overlay & Insert) (black)   (Replaces: W10584818)		Appelez-nous	-
1	W10475826		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10584819)		Appelez-nous	-
2	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
3	W10804114		Control, Electronic   (Replaces: W10540255)				$ 123.42
4	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
5	WPW10290199		Latch Assembly (white)   (Replaces: W10290199)				$ 115.09
5	WPW10290198		Latch Assembly (black)   (Replaces: W10290198)				$ 112.00
6	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
7	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
8	W10240155		Handle, Latch (white)				$ 136.55
8	W10240154		Handle, Latch (black)				$ 136.70
9	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 23.37
10	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
11	W10274837		Pipe, Light				$ 21.08
12	W10274842		Tree, Button				$ 28.27
