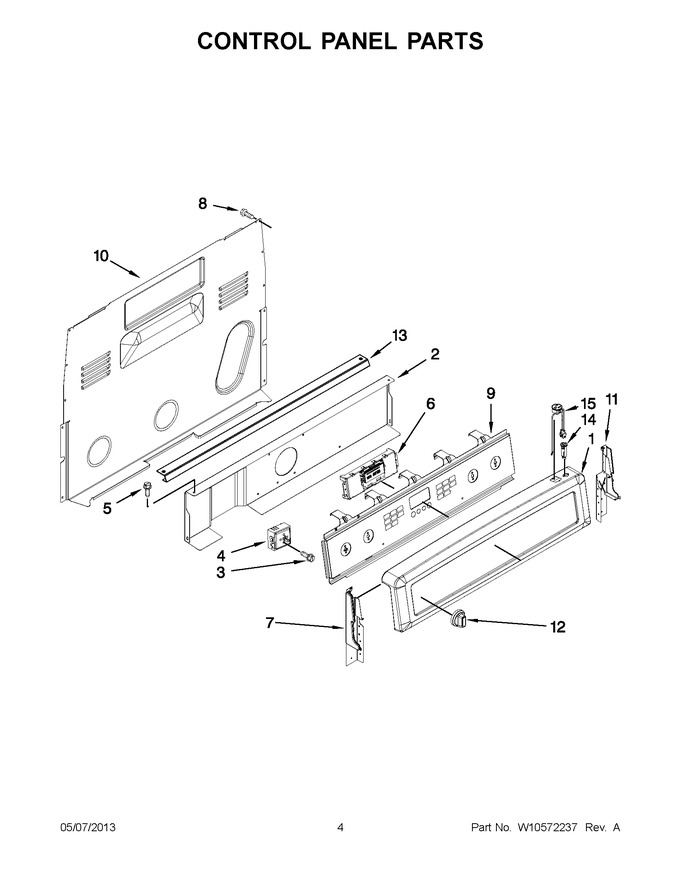

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214551 | Panel, Backguard (white) |
|
$ 104.18 | |||||
| 1 | W10225556 | Panel, Backguard (black) |
|
$ 109.86 | |||||
| 1 | WPW10225557 | Panel, Backguard (stainless) (Replaces: W10225557) |
|
$ 185.73 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10411934 | Switch, Hyper Single (left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.83 | ||||
| 4 | WPW10391743 | Switch, Triple (lerft Front) (Replaces: W10391743) |
|
Immediately | $ 124.71 | ||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148953) |
|
Immediately | $ 54.48 | ||||
| 4 | WPW10434452 | Switch, Infinite Dual (right Rear) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10340323 | Control (mrc) (Replaces: W10340323) |
|
Immediately | $ 465.09 | ||||
| 7 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 7 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 9 | WPW10339433 | Overlay, Active (Replaces: W10339433) |
|
$ 311.31 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 11 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 12 | W10370184 | Knob (white) |
|
$ 83.65 | |||||
| 12 | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 22.45 | ||||
| 12 | W10370185 | Knob (black) |
|
$ 22.80 | |||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 14 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 60.91 | ||||
| 14 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 15 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 111.11 |
