View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

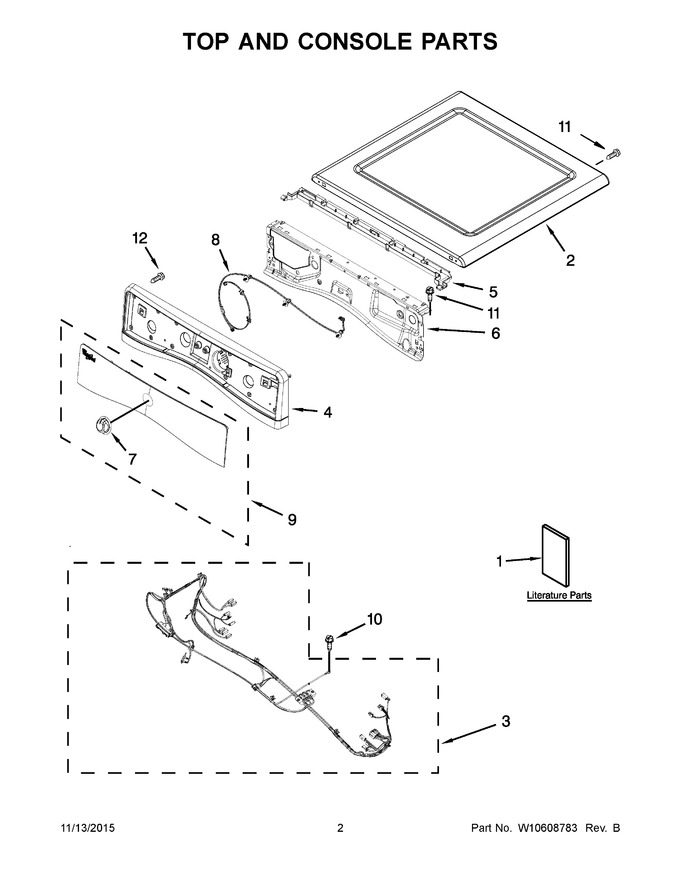

02 - Top And Console Parts
03 - Cabinet Parts
04 - Door Parts
05 - Bulkhead Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10504397 | Wiring Diagram |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10526659 | Harness, Main |
|
- | |||||
| 4 | WPW10391519 | Panel, Console (white) (Replaces: W10391519) |
|
Immediately | $ 185.80 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 9 | W10446435 | Iml Assembly (white) |
|
$ 689.02 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10489172 | Screw |
|
$ 11.98 | |||||
| 1A | W10524376 | Owners Manual |
|
- | |||||
| 1B | W10097114 | Tech Sheet |
|
- | |||||
| 1C | W10558997 | Installation Instructions |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 4A | W10876224 | Panel, Console (chrome Shadow) (Replaces: W10463690) |
|
$ 406.15 | |||||
| 9A | W10446436 | Iml Assembly (chrome Shadow) |
|
$ 499.66 |
