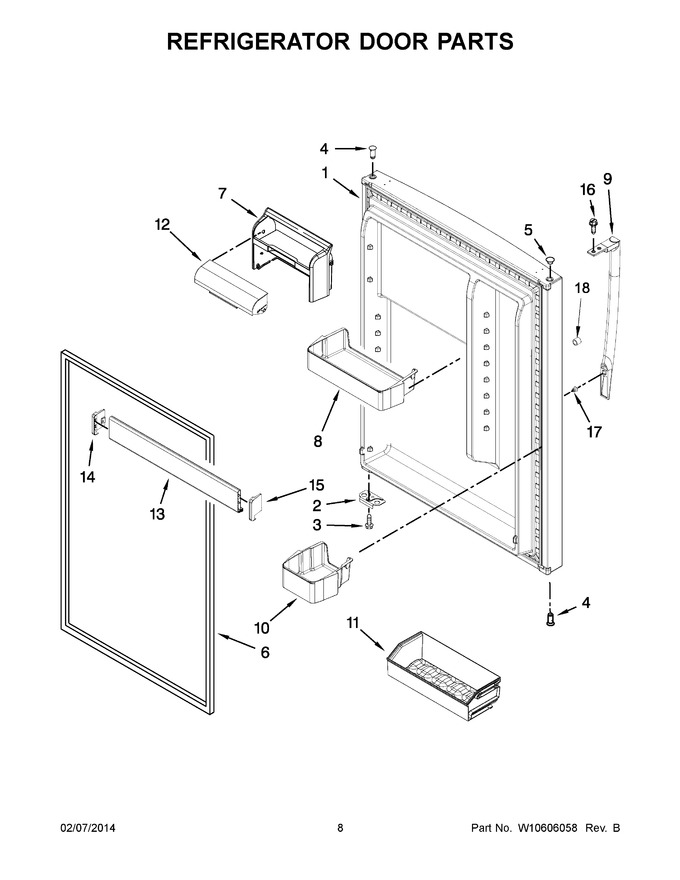

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10406239 | Door, Refrigerator (includes Items 4 And 6) (white) |
|
- | |||||
| 1 | W10406240 | Door, Refrigerator (includes Items 4 And 6) (black) |
|
- | |||||
| 1 | LW10576489 | Door, Refrigerator (includes Items 4 And 6) (stainless) (Replaces: W10576489) |
|
$ 623.55 | |||||
| 1 | W10406244 | Door, Refrigerator (includes Items 4 And 6) (sparkle Steel) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2254517 | Plug, Hinge Sleeve Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212648 | Plug, Hinge Sleeve Hole (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | WP2212651 | Plug, Hinge Sleeve Hole (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 6 | 2159061 | Gasket, Door (beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 6 | 2177311 | Gasket, Door (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 6 | W10249195 | Gasket, Door (grey) (Replaces: W10171475) |
|
$ 335.80 | |||||
| 7 | W10308809 | Housing, Compartment |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | W11765172 | Handle (titanium Sparkle) (Replaces: W10646617) |
|
Immediately | $ 125.17 | ||||
| 9 | WPW10498430 | Handle (black) (Replaces: W10498430) |
|
$ 121.29 | |||||
| 9 | WPW10498429 | Handle (white) (Replaces: W10498429) |
|
$ 175.09 | |||||
| 10 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 11 | W10308845 | Caddy, Can |
|
$ 40.40 | |||||
| 12 | WPW10308843 | Lid, Utility Flip (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | WPW10469911 | Trim, Door Shelf (Replaces: W10469911) |
|
$ 104.53 | |||||
| 14 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 15 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 18 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 16.11 |
