SELECT A DIAGRAM

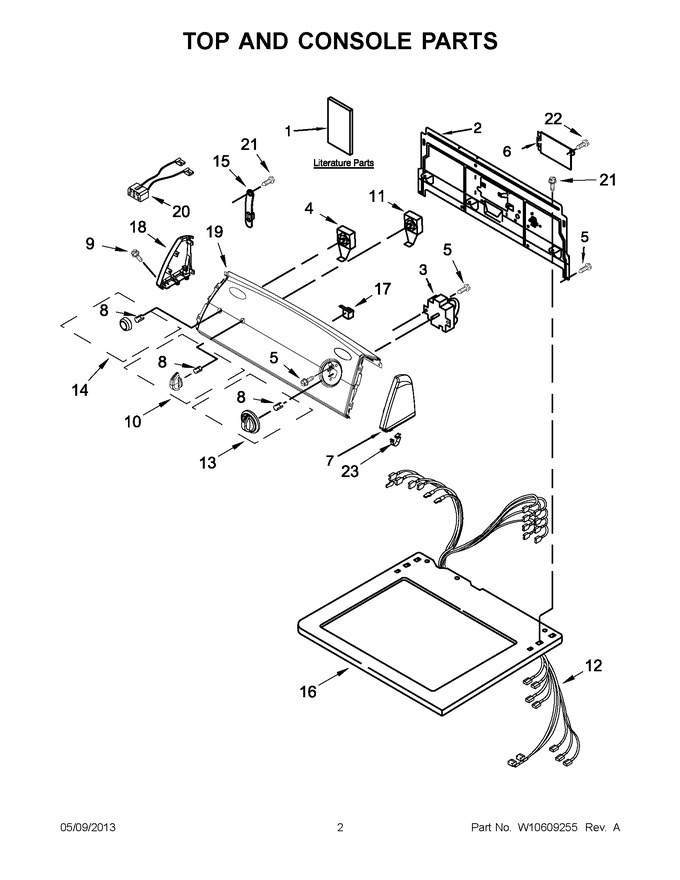

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10462986		Use And Care Guide		Appelez-nous	-
1	W10475437		Wiring Diagram		Appelez-nous	-
1	W10454272		Installation Instructions		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	W10463293		Assembly, Timer (60 Hz.)		Appelez-nous	-
4	W10238464		Switch, Push-to-start		Appelez-nous	-
5	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
6	W10601020		Cover, Terminal Block		Appelez-nous	-
7	WP8565954		End Cap (right) (white)   (Replaces: 8565954)				$ 65.84
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
11	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
12	W10450297		Harness, Main		Appelez-nous	-
13	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
14	WPW10034790		Assembly, Push-to-start Knob (white/metallic)   (Replaces: W10034790)				$ 57.81
15	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
16	8559781		Top (white)		Appelez-nous	-
17	8522378		Buzzer, Mini		Appelez-nous	-
18	WP8565957		End Cap (left) (white)   (Replaces: 8565957)				$ 64.76
19	WPW10492149		Panel & Bracket Assembly   (Replaces: W10492149)				$ 262.85
20	8283287		Wire, Jumper (temperature)		Appelez-nous	-
21	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
22	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
23	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35

    View Diagram in Separate Window       Print Part List
