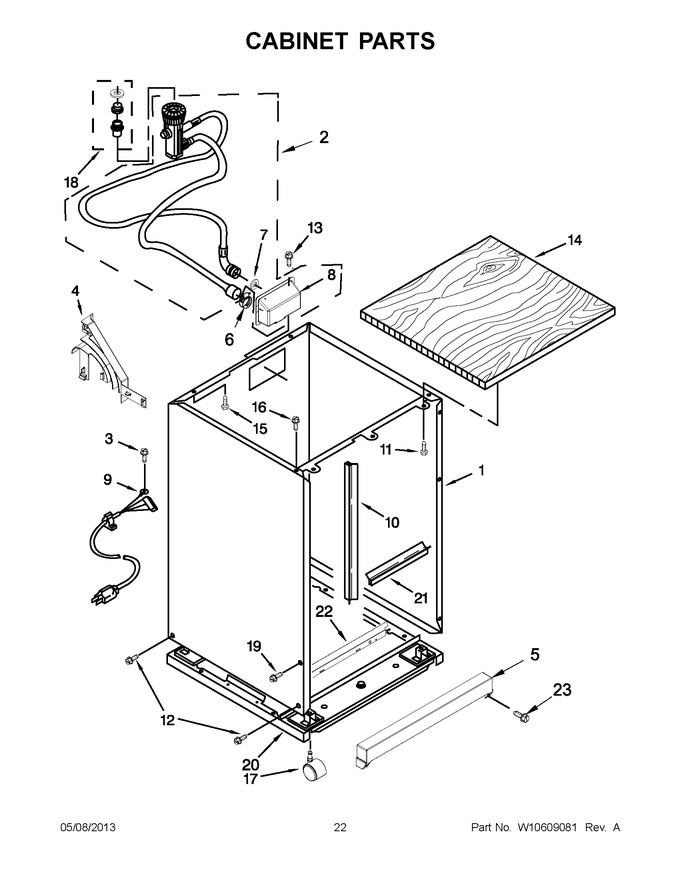

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356268 | Shell Assembly (includes Items 4, 10 & 21) (black) |
|
$ 534.29 | |||||
| 1 | W10356269 | Shell Assembly (includes Items 4, 10 & 21) (white) |
|
Immediately | $ 531.89 | ||||
| 2 | W10842407 | Coupler, Hose Assembly (Replaces: W10506237) |
|
Immediately | $ 207.55 | ||||
| 3 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 4 | 3378109 | Saddle, Hose |
|
- | |||||
| 5 | W11676533 | Shroud, Caster (black) (Replaces: W10270163) |
|
$ 64.24 | |||||
| 5 | W10270155 | Shroud, Caster (white) |
|
$ 147.38 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | 6-013783 | Washer |
|
$ 14.03 | |||||
| 8 | W10219673 | Housing, Hose |
|
- | |||||
| 9 | W11553226 | Power Cord (Replaces: W10496105) |
|
$ 132.69 | |||||
| 10 | W10219682 | Protector, Edge Divider |
|
$ 104.73 | |||||
| 11 | WP3373329 | Screw (Replaces: 3373329) |
|
$ 8.52 | |||||
| 12 | 3371644 | Screw |
|
$ 8.65 | |||||
| 13 | 3370826 | Screw |
|
- | |||||
| 14 | WP3373199 | Panel, Top (Replaces: 3373199) |
|
$ 395.30 | |||||
| 15 | WP681414 | Screw (Replaces: 304428) |
|
Immediately | $ 8.47 | ||||
| 16 | 302251 | Screw |
|
- | |||||
| 17 | WP8559933 | Casteer (Replaces: 8559932) |
|
Immediately | $ 103.49 | ||||
| 18 | WPW10254672 | Adapter, Faucet (Replaces: W10254672) |
|
Immediately | $ 55.04 | ||||
| 19 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 20 | W10254984 | Frame, Assembly (Replaces: 8559928) |
|
$ 173.73 | |||||
| 21 | W10254751 | Protector, Edge Short |
|
$ 77.24 | |||||
| 22 | W10328716 | Bar, Blocker |
|
- | |||||
| 23 | W10001330 | Screw |
|
- |
