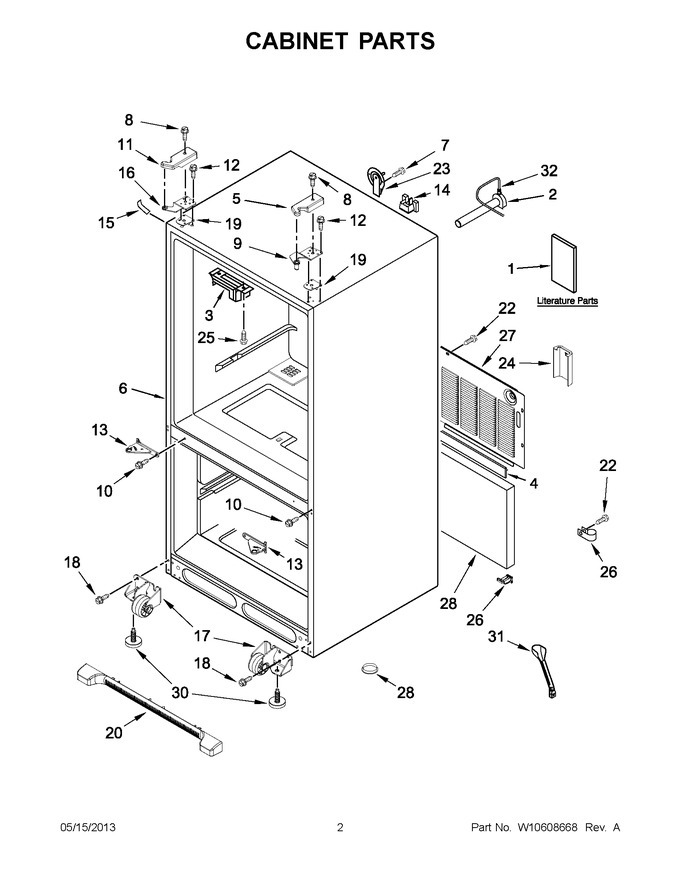

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10524420 | Tech Sheet |
|
- | |||||
| 1 | 12828189 | Guide, Use & Care |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | WPW10191117 | Cover, Right Hinge (grey) (Replaces: 12962302APN) |
|
$ 23.05 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 8 | WP12566607ED | Hinge, Top (Replaces: 12566605ED) |
|
$ 91.09 | |||||
| 8 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 11 | WPW10337648 | Cover, Left Hinge (grey) (Replaces: 12962301AP) |
|
$ 23.12 | |||||
| 12 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 13 | W10917988 | Hinge, Center Right Hand (grey) (Replaces: 13000002AP) |
|
Immediately | $ 95.63 | ||||
| 13 | W10917988 | Hinge, Center Left Hand (grey) (Replaces: 13000001AP) |
|
Immediately | $ 95.63 | ||||
| 14 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 15 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 15 | WP12566606ED | Cover, Corner (hinge, Top) (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 17 | W11820444 | Roller Assembly (front) (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 17 | W11820445 | Roller Assembly (front) (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 18 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 19 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 19 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 19 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 21 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 22 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 23 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 24 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 25 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 26 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 27 | W10523254 | Cover, Unit |
|
- | |||||
| 28 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 29 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 30 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 31 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 46.23 | ||||
| 32 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 |
