SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Refrigerator Liner Parts
03 - Refrigerator Liner Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Refrigerator Door Parts
05 - Refrigerator Door Parts

Diagram for 06 - Freezer Door Parts
06 - Freezer Door Parts

Diagram for 07 - Refrigerator Shelf Parts
07 - Refrigerator Shelf Parts

Diagram for 08 - Freezer Shelf Parts
08 - Freezer Shelf Parts

Diagram for 09 - Unit Parts
09 - Unit Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10585776 Trim, Rear Special Order $ 63.25

2 W10522574 Lid, Dairy Compartment Appelez-nous -
3 W10522389 Dairy Compartment Special Order $ 23.34

4 W10467687 Door Bin Special Order $ 16.31

5 W10585769 Bottle Separator Appelez-nous -
6 W10467690 Bottle Bin Special Order $ 21.80

7 W10467694 Bin, Egg Special Order $ 30.63

8 W10585784 Crisper Cover Special Order $ 93.16

9 W10585786 Trim, Front Special Order $ 9.30

10 W10467628 Crisper Appelez-nous -
11 W10585771 Divider Appelez-nous -
12 W10585773 Glass Shelf Appelez-nous -
13 W10585794 Rail, Side (left Hand) Special Order $ 17.23

13A W10585795 Rail, Side (right Hand) Special Order $ 17.23


    View Diagram in Separate Window     Print Icon   Print Part List

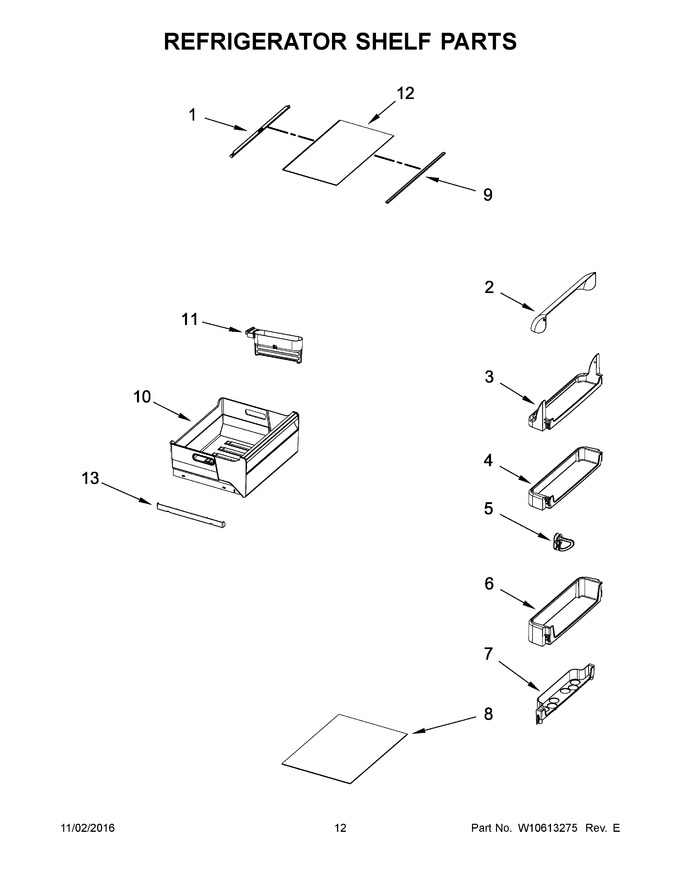

Diagram for WRB551WNBS00
