SELECT A DIAGRAM

01 - Cover

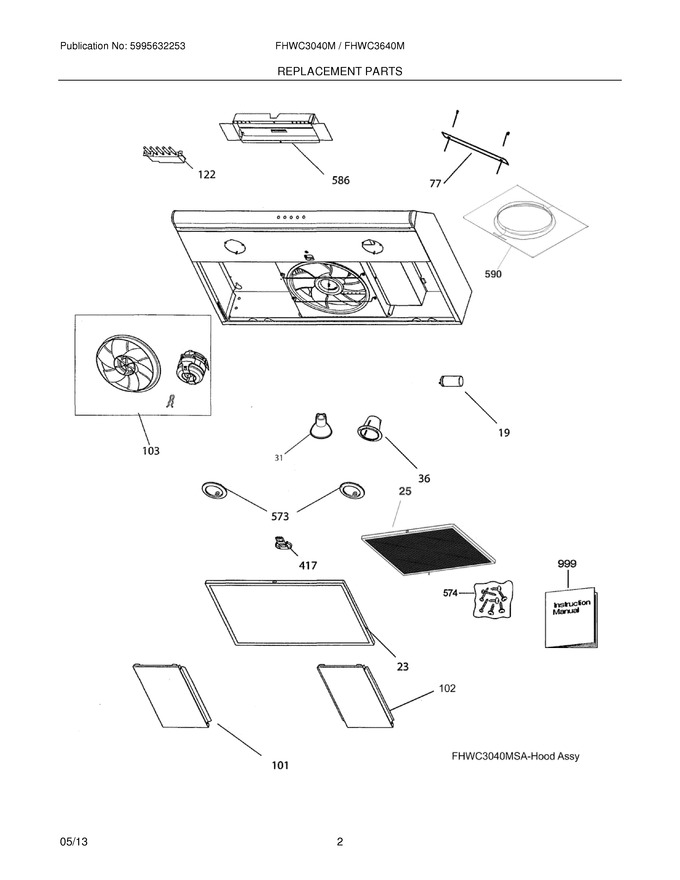

03 - Replacement Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
77	5304490030		Cover,vent ,stainless ,rectangular				$ 95.24
101	5304491596		Panel,lateral ,left Side		Appelez-nous	-
102	5304491597		Panel,lateral ,right Side		Appelez-nous	-
417	5304491591		Latch,grease Filter				$ 19.80
573	5304487849		Bezel,lamp Assembly		Appelez-nous	-
574	5304491592		Mounting Kit,hardware ,w/screws				$ 46.78
586	5304490028		Damper,vent ,3-1/4`` X 10``				$ 151.68
590	5304487139		Vent Transition Kit,round ,7``				$ 87.89
999	5304491593		Manual,use & Care ,installation		Appelez-nous	-
F103	5304491589		Motor Assembly,with Fan Blade				$ 384.60
F122	5304491590		Control,push Button				$ 738.87
F19	5304491587		Capacitor,12.5 Microfarad		Appelez-nous	-
F23	5304491588		Filter,grease ,aluminum			Immediately	$ 146.71
F25	5304486303		Filter,air ,charcoal ,recirculation				$ 70.88
F31	5304482257		Lamp,halogen ,50 W ,120 V   (Replaces: 5304466038)				$ 103.67
F36	5304487848		Lamp Holder,socket ,w/housing				$ 205.52

    View Diagram in Separate Window       Print Part List
