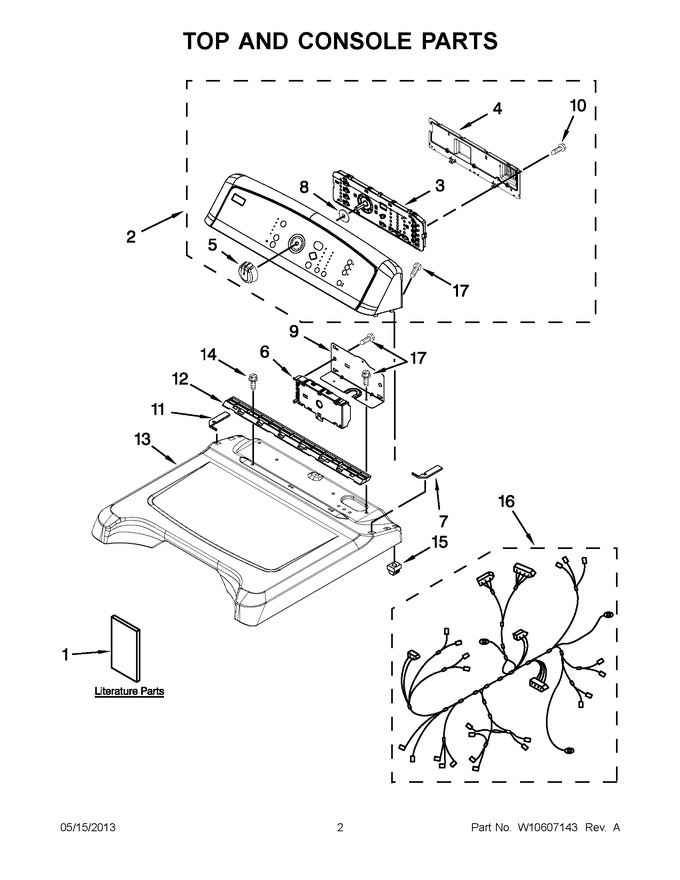

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10388780 | Guide, Use & Care |
|
- | |||||
| 1 | W10392126 | Instructions, Installation |
|
- | |||||
| 1 | W10393006 | Sheet, Tech |
|
- | |||||
| 2 | W10338343 | Panel, Console |
|
$ 339.97 | |||||
| 3 | WPW10388672 | User Interface (Replaces: W10388672) |
|
$ 305.53 | |||||
| 4 | W10051124 | Cover, Ui Rear |
|
$ 237.30 | |||||
| 5 | WPW10338554 | Knob, Control (Replaces: W10338554) |
|
$ 58.12 | |||||
| 6 | WPW10432257 | Control Electronic (Replaces: W10432257) |
|
Immediately | $ 300.26 | ||||
| 7 | W10219694 | Seal, Top (right) |
|
- | |||||
| 8 | 8572039 | Seal, User Interface |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.18 | |||||
| 11 | W10219695 | Seal, Top (left) |
|
- | |||||
| 12 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 13 | W10223157 | Top (white) |
|
$ 159.40 | |||||
| 14 | WP33001882 | Screw (Replaces: 337686) |
|
$ 75.34 | |||||
| 15 | W10112673 | Clip, Console |
|
$ 8.78 | |||||
| 16 | W10393460 | Harness, Wiring Main |
|
- | |||||
| 17 | W10131402 | Screw |
|
- |
