01 - Cooktop Parts

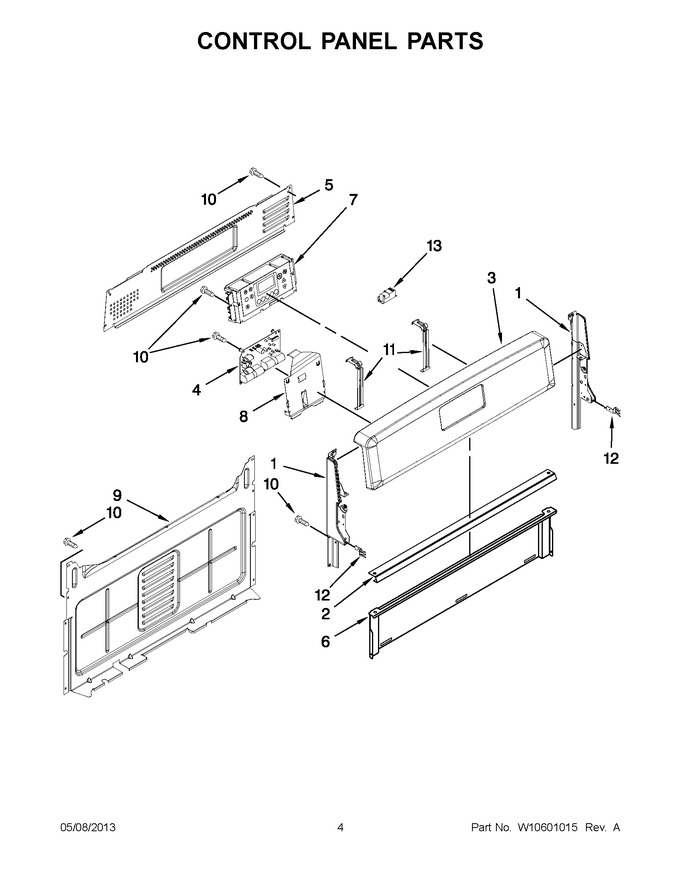

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer And Rack Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap, Left Hand (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219664 | Endcap, Left Hand (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219370 | Endcap, Left Hand (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219365 | Endcap, Left Hand (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10516123 | Bracket, Console Mounting (gas) |
|
- | |||||
| 3 | W10333933 | Console (stainless) |
|
$ 116.43 | |||||
| 3 | W10333931 | Console (white) |
|
- | |||||
| 3 | W10333932 | Console (black) |
|
- | |||||
| 4 | WPW10511278 | Module-spark (4+2) Dsi (Replaces: W10511278) |
|
Immediately | $ 352.23 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10655859 | Control, Lcc195 (white) (Replaces: W10477074) |
|
$ 298.87 | |||||
| 7 | W10477075 | Control, Lcc195 (black) |
|
- | |||||
| 7 | WPW10655865 | Control, Lcc195 (stainless) (Replaces: W10477076) |
|
$ 263.68 | |||||
| 8 | W10516463 | Bracket, Dsi |
|
- | |||||
| 9 | W10184370 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 13 | WPW10475149 | Module, Spark (2+0 Filtered) (Replaces: W10475149) |
|
Immediately | $ 217.24 |
