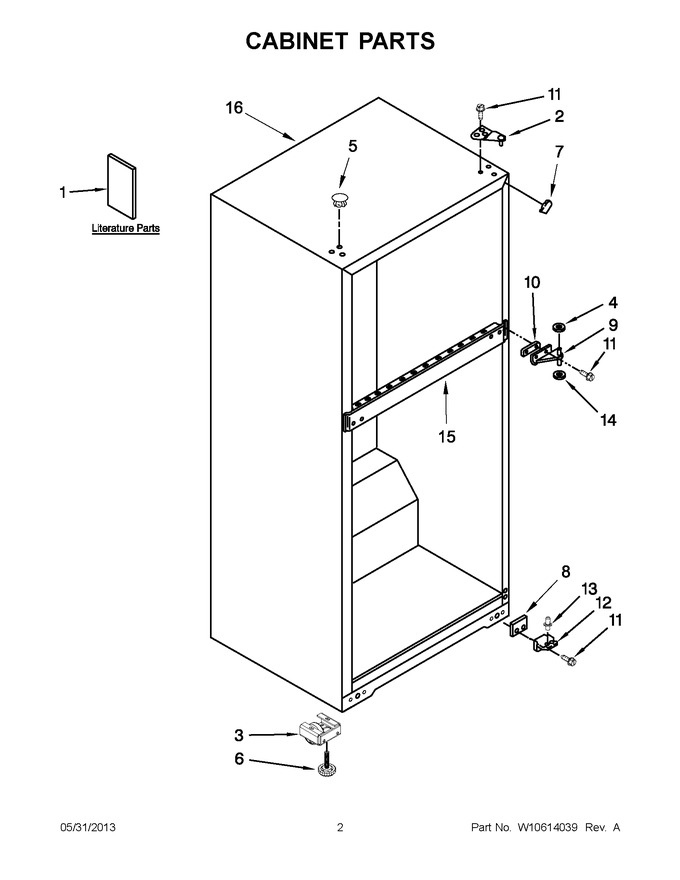

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10499330 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 1 | W10594979 | Energy Guide |
|
- | |||||
| 1 | 677969 | Manual, Do-it-yourself |
|
$ 30.30 | |||||
| 2 | WP2261963 | Top Hinge Assembly (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 5 | WPW10520306 | Hole Plug (biscuit/bisque) (Replaces: W10520306) |
|
$ 15.38 | |||||
| 5 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 19.18 | |||||
| 5 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 6 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 7 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.98 | |||||
| 7 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 7 | 2202282 | Corner Filler (biscuit/bisque) |
|
- | |||||
| 8 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 9 | WP2166037 | Hinge Assembly, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 10 | 2166043 | Shim, Hinge Center (white) |
|
$ 69.76 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 13 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 14 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 15 | N/P | Rail, Center (not Serviced |
|
- | |||||
| 16 | N/P | Cabinet (not Serviced) |
|
- |
