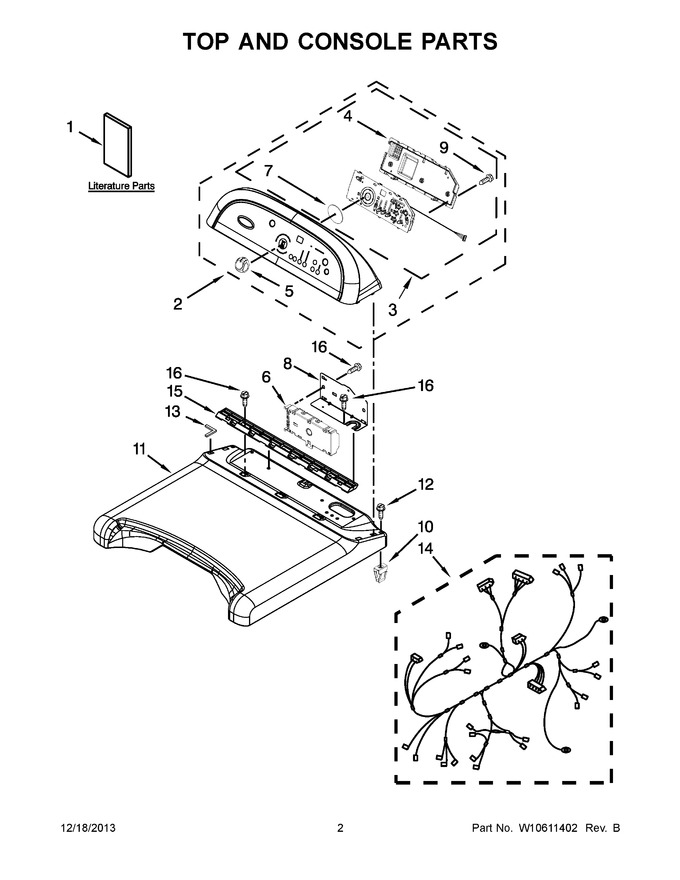

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562333		Guide, Use And Care		Appelez-nous	-
1	W10562335		Instructions, Installation		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
2	W10562308		Console (chrome Shadow)				$ 351.77
2	W10638375		Console (cherry Metallic)		Appelez-nous	-
2	W10562307		Console (white)				$ 377.72
3	W10568310		Assembly, User Interface				$ 263.55
4	8564265		Cover, Rear- User Interface				$ 142.60
5	WPW10576632		Assembly, Control Knob (grey)   (Replaces: W10576632)				$ 56.06
5	WPW10567081		Assembly, Control Knob (black)   (Replaces: W10567081)				$ 62.21
6	WPW10532428		Control, Electronic   (Replaces: W10532428)				$ 382.61
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10211337		Bracket, Machine Controller		Appelez-nous	-
9	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
10	W10112673		Clip, Console				$ 9.75
11	W10613794		Top (white)				$ 143.99
11	W10638368		Top (cherry Metallic)		Appelez-nous	-
11	W10613797		Top (chrome Shadow)				$ 146.41
12	W10131402		Screw		Appelez-nous	-
13	W10185554		Foam, Top		Appelez-nous	-
14	W10392403		Harness, Electric		Appelez-nous	-
15	8558863		Bracket, Console				$ 33.78
16	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
