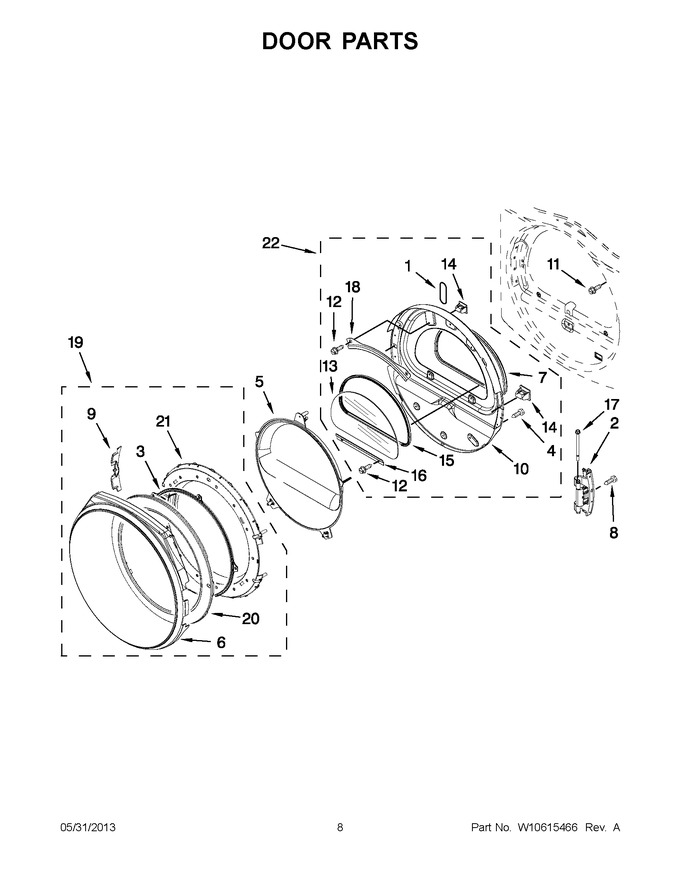

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole Cover (white)   (Replaces: W10256915)				$ 82.07
1	WPW10085230		Label-hinge Hole Cover (silver)   (Replaces: W10085230)				$ 22.95
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
3	W10215761		Screen, Door				$ 59.51
4	W11116979		Screw   (Replaces: 8534044)				$ 13.76
5	W10215764		Door, Intermediate Stationary				$ 97.85
6	W10215757		Door Trim Outer Ring (white)				$ 95.49
6	W10215823		Door Trim (outer Ring) (silve)				$ 132.75
7	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 132.71
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	W10215825		Door Trim, Hinge Cover (silver)		Appelez-nous	-
9	W10215766		Door Trim, Hinge Cover (white)				$ 26.09
10	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
17	8565087		Screw		Appelez-nous	-
18	8519356		Retainer, Window (upper)		Appelez-nous	-
19	W10371561		Door Assembly Outer (white)				$ 227.16
19	W10371562		Door Assembly Outer (silver)				$ 226.70
20	N/P		Door Trim (inner Ring) (not Serviceable Seperately, Order Item. 19 )		Appelez-nous	-
21	W10431338		Door, Intermediate Rotational		Appelez-nous	-
22	W10564641		Assembly, Inner Door				$ 226.63
