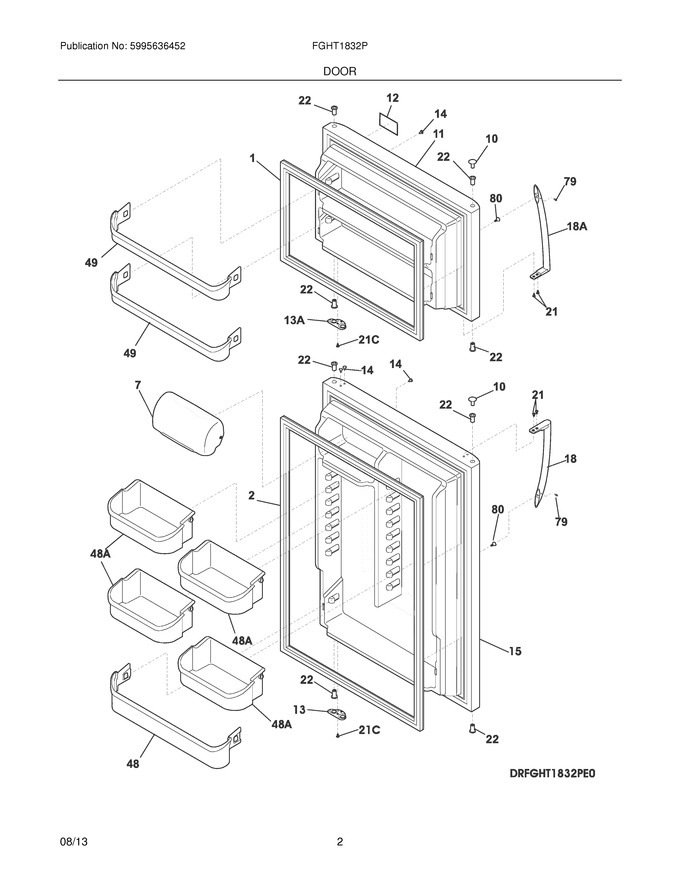

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear			Immediately	$ 89.78
10	240381303		Plug-button,black ,hinge Brg Hole				$ 77.52
11	240437409		Door-frzr,black ,complete Assy				$ 387.71
12	242015201		Label-nameplate			Immediately	$ 7.67
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 16.85
14	240494003		Plug-button,black				$ 20.22
15	240438624		Door-refr,black ,complete Assy				$ 388.76
18	5303918824		Handle-door,black ,refr-rh/frzr-lh   (Replaces: 241977505)			Immediately	$ 54.77
21	240383407		Screw,truss Hd Quad ,10 X 16 ,black   (Replaces: 240383408)				$ 14.18
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 8.43
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495805		Bin-door,pseudo ,frzr				$ 56.60
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop,black ,frzr				$ 23.63
18A	5303918824		Handle-door,black ,refr-lh/frzr-rh   (Replaces: 241977506)			Immediately	$ 54.77
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
48A	241808201		Bin-door,gallon			Immediately	$ 88.86
F1	241872509		Gasket-frzr Door,black ,magnetic			Immediately	$ 182.39
F2	241872512		Gasket-refr Door,black ,magnetic			Immediately	$ 183.77
NI	241601001		Wrench,allen		Appelez-nous	-
