SELECT A DIAGRAM

01 - Cabinet Parts

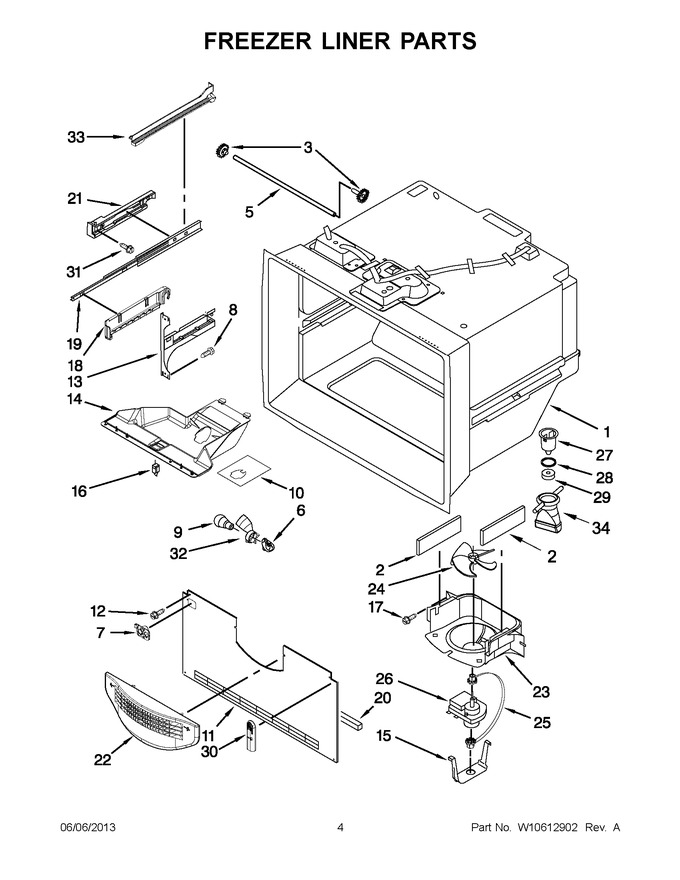

02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10856123		Gasket, Foam   (Replaces: A3189392)			Immediately	$ 7.25
3	12002497		Gear			Immediately	$ 20.26
5	W11028221		Shaft, Rack   (Replaces: 12812903WD)				$ 29.92
6	W11447232		Socket, Light   (Replaces: W10134764V)			Immediately	$ 12.48
7	W11448709		Guide, Fill Tube   (Replaces: 12932103)				$ 23.28
8	WP98165		Screw   (Replaces: 12990521)				$ 7.71
9	WP67002552		Bulb, Light   (Replaces: A0282808V)			Immediately	$ 11.11
10	W11469652		Housing, Foil   (Replaces: W10277466)				$ 20.96
11	W10308418		Cover, Evaporator		Appelez-nous	-
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
13	WPW10330994		Bracket, Door (left Hand)   (Replaces: W10330994)			Immediately	$ 152.12
13	WPW10330995		Bracket, Door (right Hand)   (Replaces: W10330995)			Immediately	$ 306.55
14	WPW10277025		Module, Light   (Replaces: W10277025)				$ 120.96
15	10623002		Clip, Evaporator				$ 10.90
16	W11396033		Switch, Light   (Replaces: 12466114)			Immediately	$ 33.57
17	WP98165		Screw   (Replaces: 12990504)				$ 7.71
18	WPW10281115		Cradle, Basket (left Hand)   (Replaces: W10281115)				$ 74.30
18	WPW10281116		Cradle, Basket (right Hand)   (Replaces: W10281116)				$ 75.02
19	W11658403		Slide, Drawer   (Replaces: 13055901N)			Immediately	$ 202.73
20	W11451451		Gasket, Foam   (Replaces: A3189397)				$ 11.73
21	WPW10284692		Adapter, Slide (left Hand)   (Replaces: W10284692)				$ 113.00
21	WPW10284693		Adapter, Slide (right Hand)   (Replaces: W10284693)				$ 112.87
22	WPW10175909		Grille, Freezer Air   (Replaces: 13024803)			Immediately	$ 77.15
23	WPW10167023		Shroud, Evaporator   (Replaces: 13057901)			Immediately	$ 94.12
24	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
25	W10121318		Grommet				$ 45.72
26	W10545978		Motor, Evaporator		Appelez-nous	-
27	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 46.35
28	WPM0500703		Seal   (Replaces: M0500703)				$ 10.32
29	WPB8381501		Gasket, Drain   (Replaces: B8381501)				$ 7.00
31	WP67003924		Cover, Thermistor   (Replaces: 12815301)				$ 7.39
32	WP489474		Screw   (Replaces: 12990501)			Immediately	$ 7.70
33	W10516605		Rack-side (left Hand)				$ 106.43
33	W10516604		Rack-side (right Hand)				$ 106.41
34	W10619951		Extension, Drain Tube   (Replaces: W10309238)			Immediately	$ 41.61
34	W10119914		Shroud, Light Socket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
