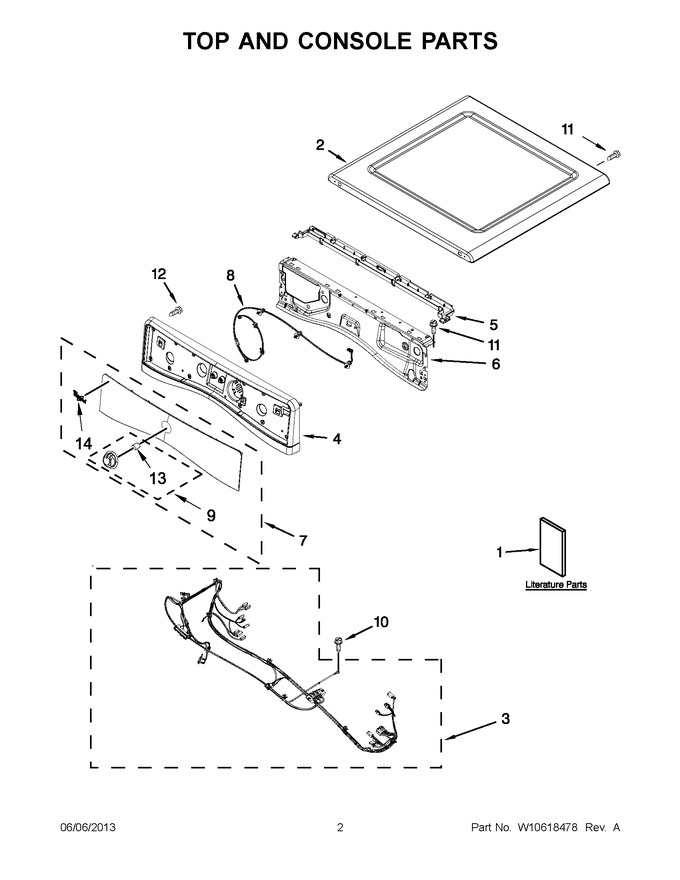

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10524376 | Owners Manual |
|
- | |||||
| 1 | W10558994 | Installation Instructions |
|
- | |||||
| 1 | W10097114 | Tech Sheet |
|
- | |||||
| 1 | W10504395 | Wiring Diagram |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 2 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 3 | W10526661 | Harness, Main Wiring |
|
- | |||||
| 4 | W10876224 | Console (chrome Shadow) (Replaces: W10463690) |
|
$ 406.15 | |||||
| 4 | WPW10391519 | Console (white) (Replaces: W10391519) |
|
Immediately | $ 185.80 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10446435 | Assembly, Iml (white) |
|
$ 689.02 | |||||
| 7 | W10446436 | Assembly, Iml (chrome Shadow) |
|
$ 499.66 | |||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 9 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 13 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 14 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 14 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 |
