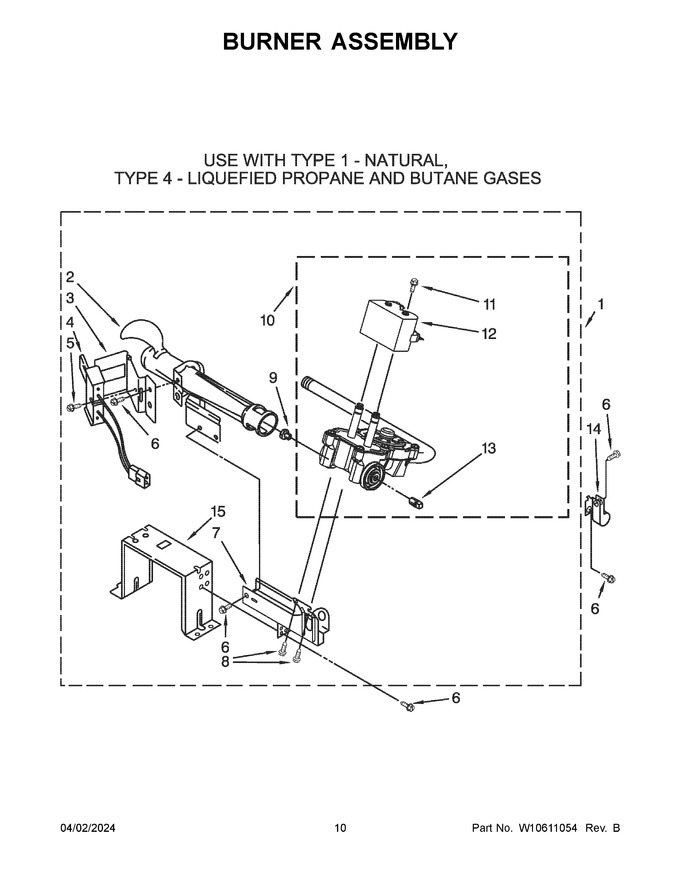

06 - Burner Assembly
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10492509 | Burner Assembly 60 Hz. (type 1) (copreci) (Replaces: W10480349) |
|
- | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 83.25 | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 9 | 234870 | Orifice, Burner (type 1 (natural)) |
|
$ 129.29 | |||||
| 10 | W11676916 | Valve, Gas 60 Hz. (complete) (Replaces: W10299939) |
|
$ 284.80 | |||||
| 11 | 326049536 | Screw |
|
- | |||||
| 12 | WPW10328463 | Coil (60 Hz) (Replaces: W10328463) |
|
Immediately | $ 79.02 | ||||
| 13 | W10295523 | Pipe Plug |
|
- | |||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 9A | WPW10165431 | Orifice, Burner (type 4 (propane)) (Replaces: W10165431) |
|
$ 25.74 | |||||
| 9B | WP229742 | Orifice, Burner (type 4 (butane)) (Replaces: 229742) |
|
$ 36.59 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W10436933 | Conversion Kit (type 1 And 2) To Type L.p.g. |
|
$ 63.27 |
