SELECT A DIAGRAM

01 - Top And Cabinet Parts

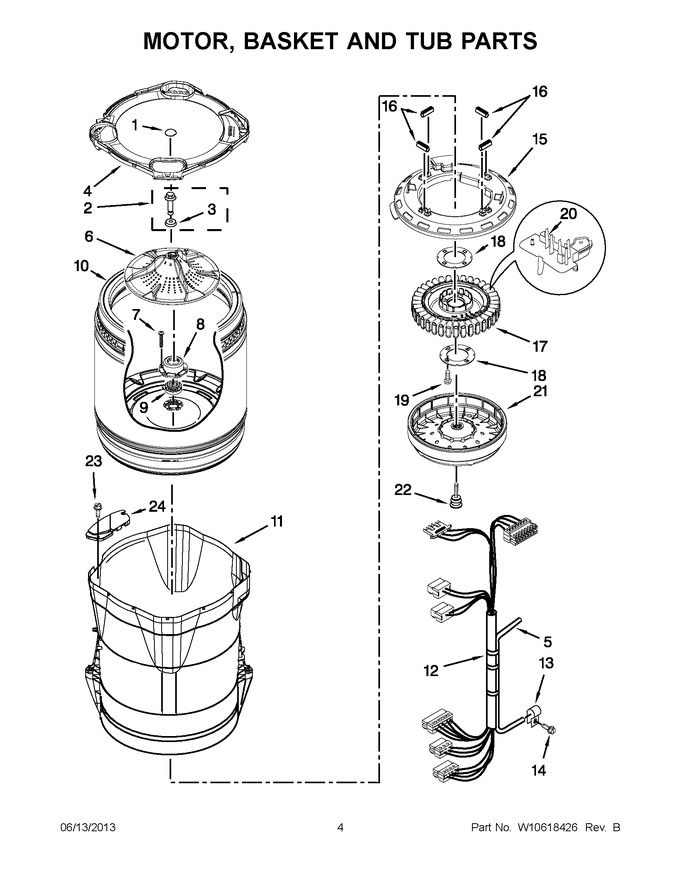

02 - Motor, Basket And Tub Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305259		Cap, Impeller   (Replaces: W10305259)				$ 21.27
2	W10076270		Screw And Washer Assembly				$ 5.83
3	WPW10076260		Washer   (Replaces: W10076260)				$ 10.69
4	WPW10591323		Tub Ring   (Replaces: W10591323)				$ 186.39
5	WP353244		Hose Pressure Switch   (Replaces: W10297449)			Immediately	$ 78.00
6	W11252784		Impeller (washplate)   (Replaces: W10286241)				$ 250.84
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 6.80
8	W10820039		Hub, Basket-driven   (Replaces: W10118114)			Immediately	$ 34.99
9	W10820039		Hub, Basket Driver   (Replaces: 8545953)			Immediately	$ 34.99
10	W10518300		Basket Assembly				$ 692.06
11	W10381078		Assembly, Tub And Drive Shaft			Immediately	$ 673.64
12	W10504822		Harness, Lower				$ 112.75
13	W10005430		Clamp, Cable			Immediately	$ 8.58
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
15	W10137698		Shield, Drive Motor				$ 37.16
16	8565172		Tube, Buffer (set Of 4)		Appelez-nous	-
17	WPW10419333		Stator, Motor   (Replaces: W10419333)			Immediately	$ 314.48
18	WP8557836		Plate, Stator   (Replaces: 8557836)			Immediately	$ 99.50
19	8534042		Screw				$ 5.65
20	WPW10178988		Rps Assembly   (Replaces: W10178988)			Immediately	$ 44.35
21	280146		Rotor, Main Drive Motor   (Replaces: 8565177)			Immediately	$ 309.31
22	N/P		Bolt, Rotor Assembly Non-serviceable (supplied W/rotor)		Appelez-nous	-
23	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 7.43
24	W10222008		Filter, Dual Pump Hood				$ 61.51

    View Diagram in Separate Window       Print Part List
