SELECT A DIAGRAM

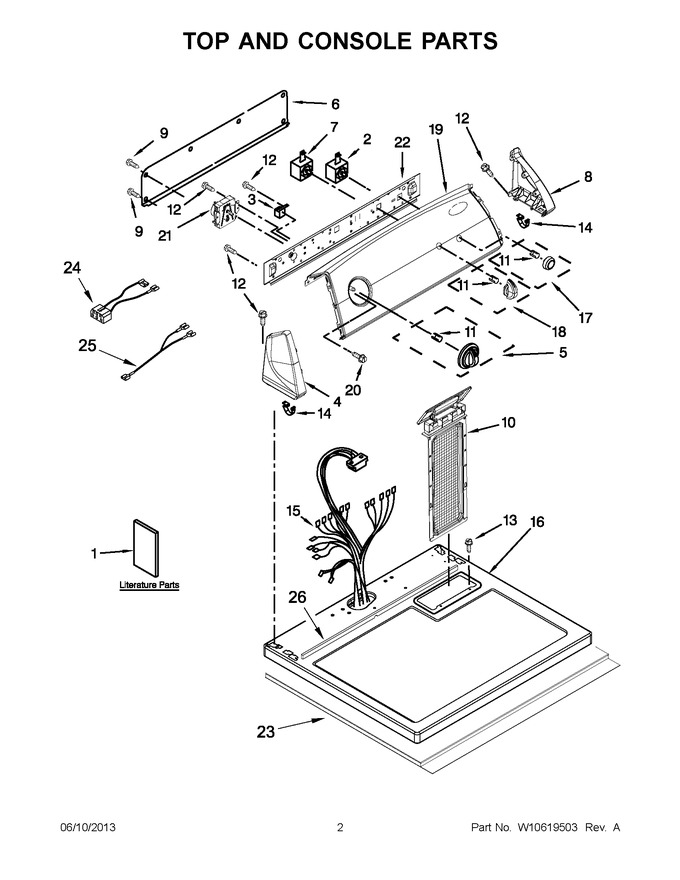

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576796		Wiring Diagram		Appelez-nous	-
1	W10329763		Instructions, Installation		Appelez-nous	-
1	W10536125		Use & Care Guide		Appelez-nous	-
2	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	8566061		Assembly, Timer Knob (white)				$ 26.93
6	W10103406		Panel, Rear (console)				$ 135.31
7	3405152		Switch, Rotary				$ 131.07
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	8299876		Harness, Wiring (complete)		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WP8566065		Assembly, Push-to-start Knob (white)   (Replaces: 8566065)				$ 55.30
18	8565944		Assembly, Control Knob (white)				$ 25.10
19	W10518936		Console (white)		Appelez-nous	-
20	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
21	WP3977678		Timer Assembly (60 Hz.)   (Replaces: 3977678)				$ 332.54
22	8566052		Bracket, Control		Appelez-nous	-
23	W10123956		Panel, Dampening		Appelez-nous	-
24	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
25	W10203571		Jumper, Push-to-start		Appelez-nous	-
26	W10316616		Seal, Foam				$ 27.79

    View Diagram in Separate Window       Print Part List
