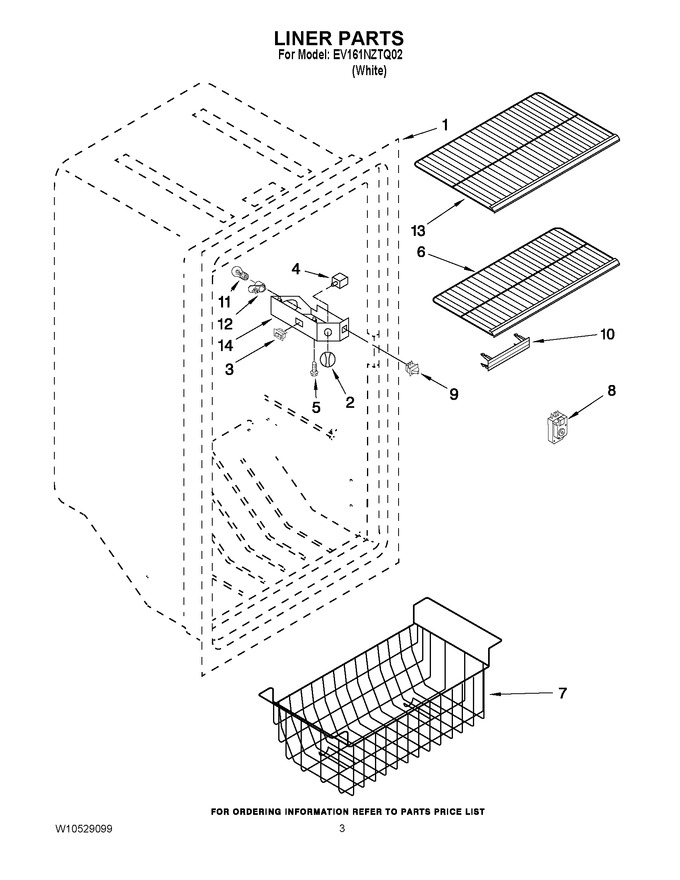

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob, Control |
|
$ 27.09 | |||||
| 3 | W10406953 | Switch, Alarm (illuminated) |
|
$ 27.70 | |||||
| 4 | WPW10474749 | Thermostat (Replaces: W10474749) |
|
Immediately | $ 206.50 | ||||
| 5 | 3-24004-092 | Screw |
|
$ 4.28 | |||||
| 6 | 4-82314-001 | Shelf, Lower Wire |
|
$ 120.63 | |||||
| 7 | 4-60064-002 | Basket, Wire |
|
- | |||||
| 8 | WP3-81329 | Timer, Defrost (Replaces: 3-81329) |
|
Immediately | $ 179.23 | ||||
| 9 | W11384469 | Switch, Light (Replaces: 2-32164-001) |
|
Immediately | $ 35.18 | ||||
| 10 | WP3-80414-103 | Air Baffle (Replaces: 3-80414-103) |
|
$ 12.15 | |||||
| 11 | 40A15 | Bulb, Light (Replaces: 1-34291-002) |
|
Immediately | $ 1.98 | ||||
| 12 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 13 | 4-82315-001 | Shield, Light |
|
$ 317.21 | |||||
| 14 | 4-82389-005 | Box, Control |
|
$ 102.20 |
