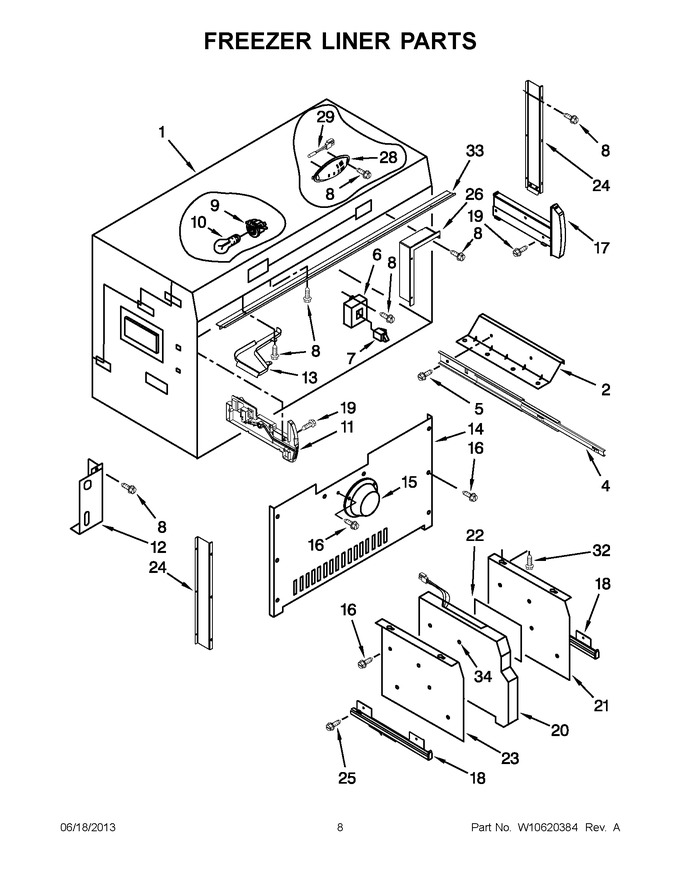

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner, Freezer (not Servicable) |
|
- | |||||
| 2 | W10744329 | Mounting Bracket, Drawer Slide (Replaces: W10423553) |
|
$ 342.65 | |||||
| 4 | W11650036 | Drawer Slide, Freezer Basket (Replaces: W10423551) |
|
Immediately | $ 346.34 | ||||
| 5 | W10061370 | Screw |
|
$ 8.19 | |||||
| 6 | W10234211 | Cover, Switch |
|
- | |||||
| 7 | W11384469 | Switch, Rocker Arm (ref) (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 8 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 9 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.38 | |||||
| 10 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.11 | ||||
| 11 | W10321131 | Switch Assembly, Ice Maker |
|
$ 151.80 | |||||
| 12 | 2306187 | Cover, Wiring (icemaker) |
|
- | |||||
| 13 | 2317006 | Duct, Air Flow (icemaker) |
|
- | |||||
| 14 | 2268380 | Cover, Evaporator |
|
$ 90.03 | |||||
| 15 | 2317829 | Cover, Fan |
|
- | |||||
| 16 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 17 | 2306106 | Spacer, Drawer (right Side) |
|
$ 18.71 | |||||
| 18 | 2306116 | Slide, Freezer Bin (right Hand) |
|
$ 294.24 | |||||
| 18 | 2306117 | Slide, Freezer Bin (left Hand) |
|
$ 265.40 | |||||
| 19 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.54 | |||||
| 20 | W10290822 | Divider, Freezer Bins |
|
$ 269.04 | |||||
| 21 | W10716209 | Support, Slide (right Hand) (Replaces: 2306104) |
|
$ 54.95 | |||||
| 22 | 2317927 | Shield |
|
- | |||||
| 23 | 2306105 | Support, Slide (left Hand) |
|
$ 117.96 | |||||
| 24 | 2327339 | Bracket, Evaporator Cover (right Hand) |
|
- | |||||
| 24 | 2320512 | Bracket, Evaporator Cover (left Hand) |
|
- | |||||
| 25 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.54 | |||||
| 26 | 2317902 | Bracket, Air Return |
|
- | |||||
| 28 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 10.84 | |||||
| 29 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 32 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 33 | W10135431 | Air Deflector Assembly |
|
- | |||||
| 34 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.18 |
