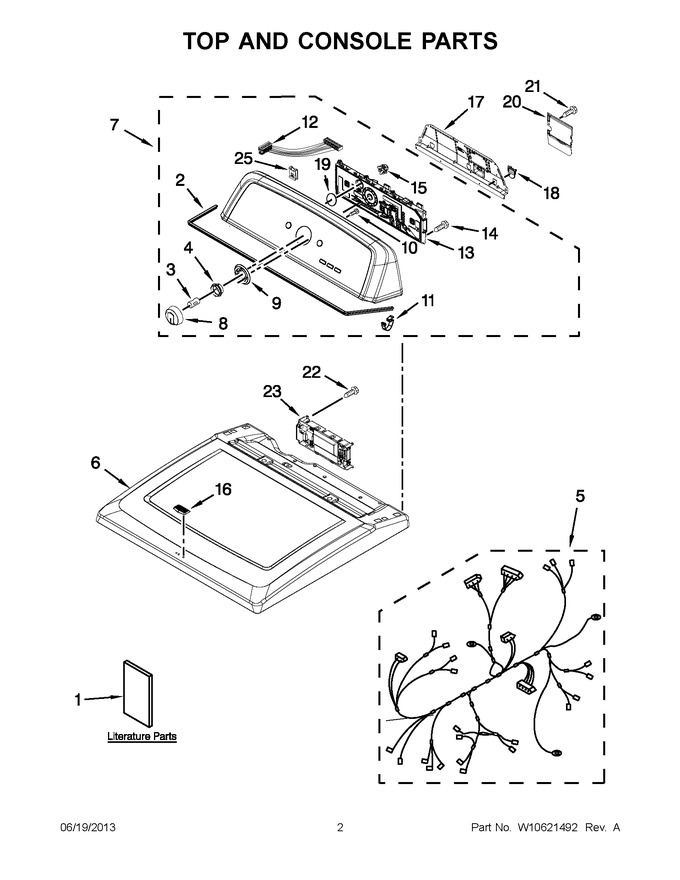

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - 8576353 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10287249 | Wiring Diagram |
|
- | |||||
| 1 | W10096989 | Guide, Use & Care |
|
- | |||||
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 1 | W10417013 | Tech Sheet |
|
- | |||||
| 2 | W10280079 | Seal, Console |
|
- | |||||
| 3 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 4 | W10326923 | Spacer, Knob |
|
- | |||||
| 5 | W10287253 | Harness, Wiring (main) |
|
- | |||||
| 6 | W10268731 | Top (silver) |
|
$ 132.83 | |||||
| 6 | WPW10268730 | Top (white) (Replaces: W10268730) |
|
$ 345.86 | |||||
| 7 | WPW10293249 | Console Assembly (complete) (white) (Replaces: W10293248) |
|
$ 529.90 | |||||
| 7 | WPW10293249 | Console Assembly (complete) (silver) (Replaces: W10293249) |
|
$ 529.90 | |||||
| 8 | WPW10251384 | Knob Assembly (chrome (for Silver Model)) (Replaces: W10251384) |
|
$ 64.58 | |||||
| 8 | WPW10251381 | Knob Assembly (silver (for White Model)) (Replaces: W10251381) |
|
$ 58.63 | |||||
| 9 | W10305134 | Bezel, Cycle Trim |
|
$ 26.37 | |||||
| 10 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 11 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 12 | W10285494 | Cable, User Interface |
|
- | |||||
| 13 | WPW10272644 | Assembly, User Interface (Replaces: W10272644) |
|
$ 313.89 | |||||
| 14 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 15 | W10274524 | Tensioner, Fascia |
|
- | |||||
| 16 | W10492808 | Badge |
|
$ 59.82 | |||||
| 17 | W10550615 | Panel, Rear Console |
|
$ 116.83 | |||||
| 18 | W10279552 | Plug, Upper Rear Panel |
|
- | |||||
| 19 | W10323092 | Seal, User Interface |
|
- | |||||
| 20 | W10338363 | Cover, Terminal Block |
|
- | |||||
| 21 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 22 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 23 | WPW10214009 | Ccu-control (Replaces: W10214009) |
|
$ 395.99 | |||||
| 25 | W11213336 | Nut, ``u`` (Replaces: W10298336) |
|
$ 8.13 |
